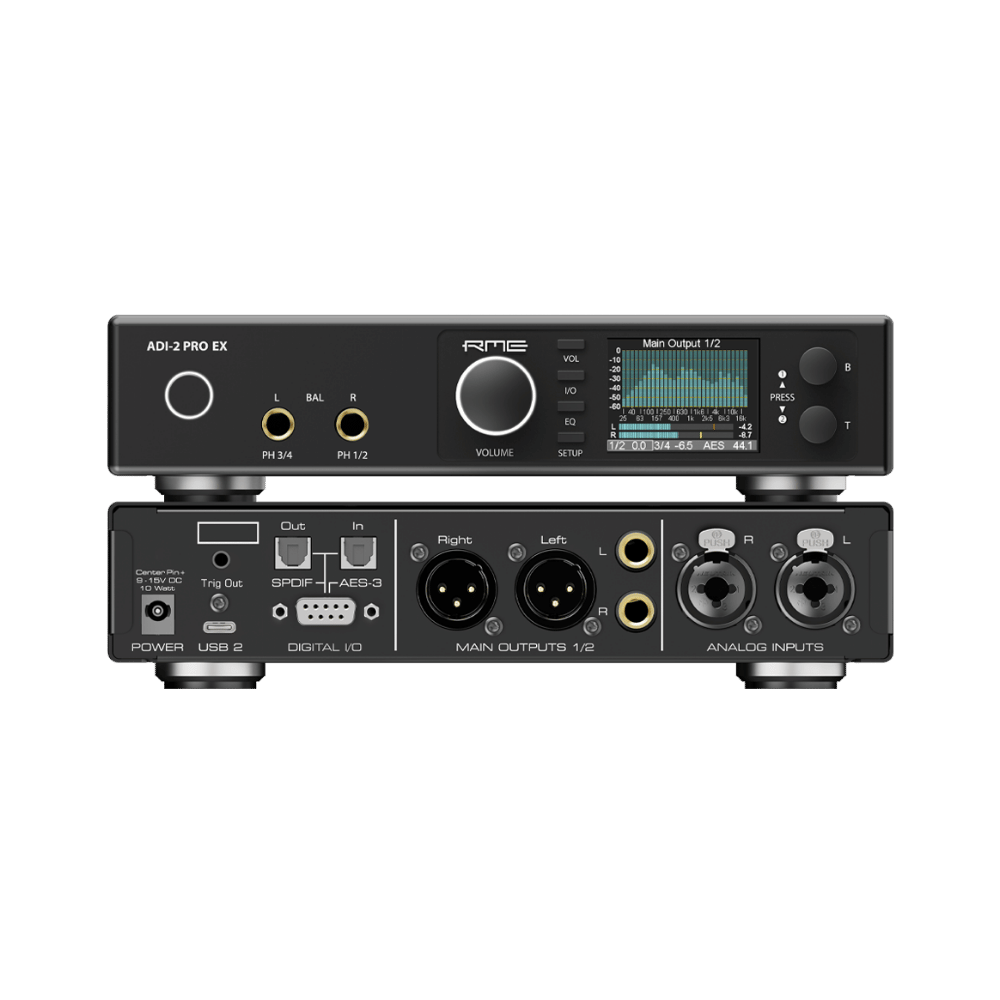

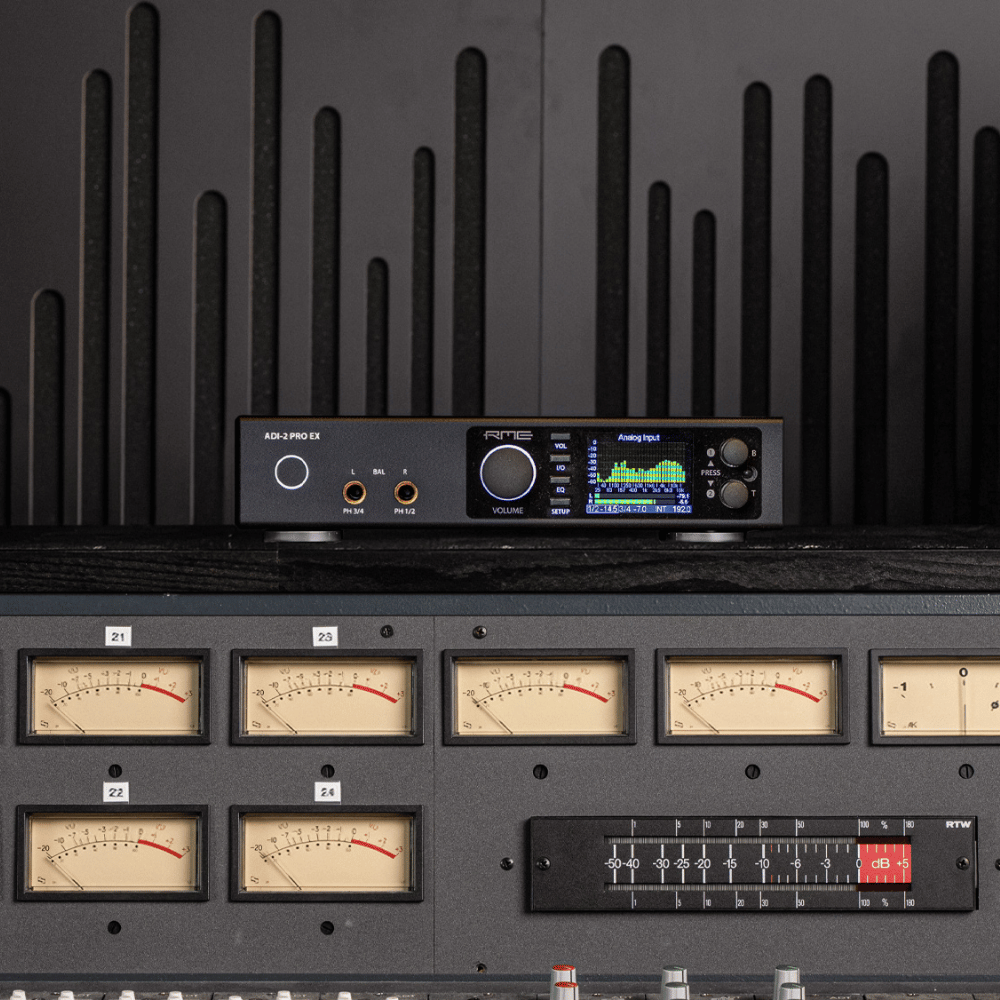

RME 參考級 all-in-one 轉換器概念的最新進化。ADI-2 Pro EX 承襲 ADI-2 Pro FS R Black Edition 的完整功能,換上全新機箱、更強的輸出效能與更完善的硬體保護。集高階錄音室 AD/DA、雙耳擴、多格式轉換(AES / SPDIF / ADAT)、DSD 錄放與量測前端於一身,最高支援 768 kHz,是市面上最靈活的轉換器之一。適合錄音室參考監聽、專業母帶處理與發燒聆聽。
多合一參考轉換器
・高階錄音室 AD/DA 轉換器(ADC:AK5574;DAC:AK4493)
・雙耳機擴大機
・多格式轉換器(AES / SPDIF / ADAT)含監聽功能
・DSD 錄音與 Direct DSD 播放(256 / 11.2 MHz)
・可作量測系統的 AD/DA 前端,最高 768 kHz
EX 版本升級重點
・全新加大機箱並加入通風,散熱更佳(呼應 ADI-2/4 Pro 外觀)
・採用 ADI-2 DAC FS 的鍍鉻腳墊
・可鎖式 USB-C 連接(USB 2.0、無匯流排供電),附 1.8 m 線
・新增 TS Trigger 輸出,可同步控制外接後級/器材電源
・平衡與非平衡耳擴輸出功率提升
・聲道獨立 DC 保護電路,可靠度更高
・無保險絲主動式 PSU 保護,偵測並防止反接與過壓
・附可鎖式 NT-RME-13 通用電源(半接地,避免漏電流與地迴路)
Extreme Power 耳機輸出
・強化 Extreme Power 耳擴輸出級,完整發揮 DAC 效能,也能推好低阻抗耳機
・低/高功率模式,對應各類耳機
・獨家 Advanced Balanced 平衡模式:DAC 到耳機的直接平衡訊號路徑,音質、頻率響應與一致性更佳
顯示與 DSP 功能
・高解析 IPS 顯示幕操作,並顯示警示與導引訊息
・5 段參數 EQ(耳機個別補償)、Bass/Treble 快捷、binaural crossfeed、可調 loudness、可選 AD/DA 濾波器
・M/S 處理、立體聲寬度、相位反轉,全部可控並可儲存
・RME 著名 Spectral Analyzer(30 段 biquad 頻譜分析)
・SteadyClock FS 參考級數位時脈,超低 jitter、高抗擾
連接與控制
・伺服平衡類比輸入(Combo XLR / TRS)
・XLR 與 TRS 平衡/非平衡輸出各兩組,前面板兩組 Extreme Power 耳機輸出
・光纖 SPDIF(相容 ADAT)、同軸 SPDIF(RCA)、AES I/O(XLR,透過附贈 breakout 線)
・USB-C 全 Class Compliant(UAC2),相容 iOS 裝置,並用於韌體更新
・電腦介面:立體聲(2 in / 2 out)或多聲道(6 in / 8 out)模式;macOS 免驅動,Windows 用 RME MADIface 系列驅動(WDM / ASIO)
・可電池供電、可電氣隔離使用;支援 ADI-2 Remote 軟體與 MRC 多功能遙控
類比輸入(XLR / TRS,伺服平衡)
・輸入阻抗:平衡 18 kΩ、非平衡 9 kΩ
・輸入靈敏度可切換:+24 / +19 / +13 / +4 dBu @ 0 dBFS
・數位 Trim Gain:0 至 +6 dB
・SNR @ +13/19/24 dBu:120 dB(未加權)、122 dBA
・THD @ -1 dBFS:-120 dB(0.0001%)
・THD+N @ -1 dBFS:-116 dB(0.00016%)
・聲道分離度:> 110 dB
・頻率響應(768 kHz,-3 dB):< 1 Hz – 180 kHz
類比輸出(XLR)
・輸出阻抗:200 Ω
・輸出電平可切換:+24 / +19 / +13 / +4 dBu @ 0 dBFS
・SNR @ +13/19/24 dBu:120 dB(未加權)、123 dBA
・THD @ 0 dBFS:< -120 dB(0.0001%)
・THD+N @ 0 dBFS:-115 dB(0.00018%)
・聲道分離度:> 110 dB
類比輸出(TRS,後方)
・6.3 mm TRS,阻抗平衡
・最大輸出電平:+19 dBu
・輸出阻抗:非平衡 100 Ω、平衡 200 Ω
耳機輸出 Phones 1/2(非平衡)
・6.3 mm TRS,輸出阻抗 0.1 Ω
・0 dBFS 輸出(Ref +19 dBu,≥100 Ω 負載):+22 dBu(10 V)
・最大輸出功率(0.1% THD+N):300 Ω 0.37 W、32 Ω 1.9 W、16 Ω 2.1 W/聲道
・SNR @ +22 dBu:120 dB(未加權)、123 dBA
・(Phones 3/4 同上,Hi-Power Off +7 dBu/On +22 dBu)
平衡耳機模式(Balanced Phones)
・輸出阻抗:0.2 Ω
・0 dBFS 輸出:Hi-Power Off +13 dBu(3.46 V)、Hi-Power On +28 dBu(19.5 V)
・SNR @ +28 dBu:123 dB(未加權)、126 dBA
・最大輸出功率(0.1% THD+N):300 Ω 1.4 W、32 Ω 4.2 W、16 Ω 2.7 W/聲道
・聲道分離度:> 130 dB @ 1 kHz
數位輸入
・AES/EBU:1 x XLR,變壓器平衡、電氣隔離(AES3-1992)
・SPDIF 同軸:1 x RCA,高靈敏輸入(< 0.3 Vpp)、相容 AES/EBU
・SPDIF 光纖:1 x optical,相容 ADAT
・鎖定範圍:28 kHz – 200 kHz;外部時脈 Jitter 抑制 > 50 dB
數位輸出
・AES/EBU:1 x XLR,隔離,輸出電平 2.9 Vpp
・SPDIF 同軸:1 x RCA,0.75 Vpp
・SPDIF 光纖:1 x optical
・時脈來源:Internal / AES In / SPDIF In / ADAT In
・內部支援取樣率:44.1 kHz – 768 kHz
一般
・電源:外接交換式 PSU,100–240 V AC,2 A,24 W
・耗電:Idle 12 W、最大 24 W;待機(DC 12V)170 mW
・尺寸(W x H x D):215 x 44 x 160 mm
・重量:1.15 kg
・工作溫度:+5 至 +50 °C
內容物

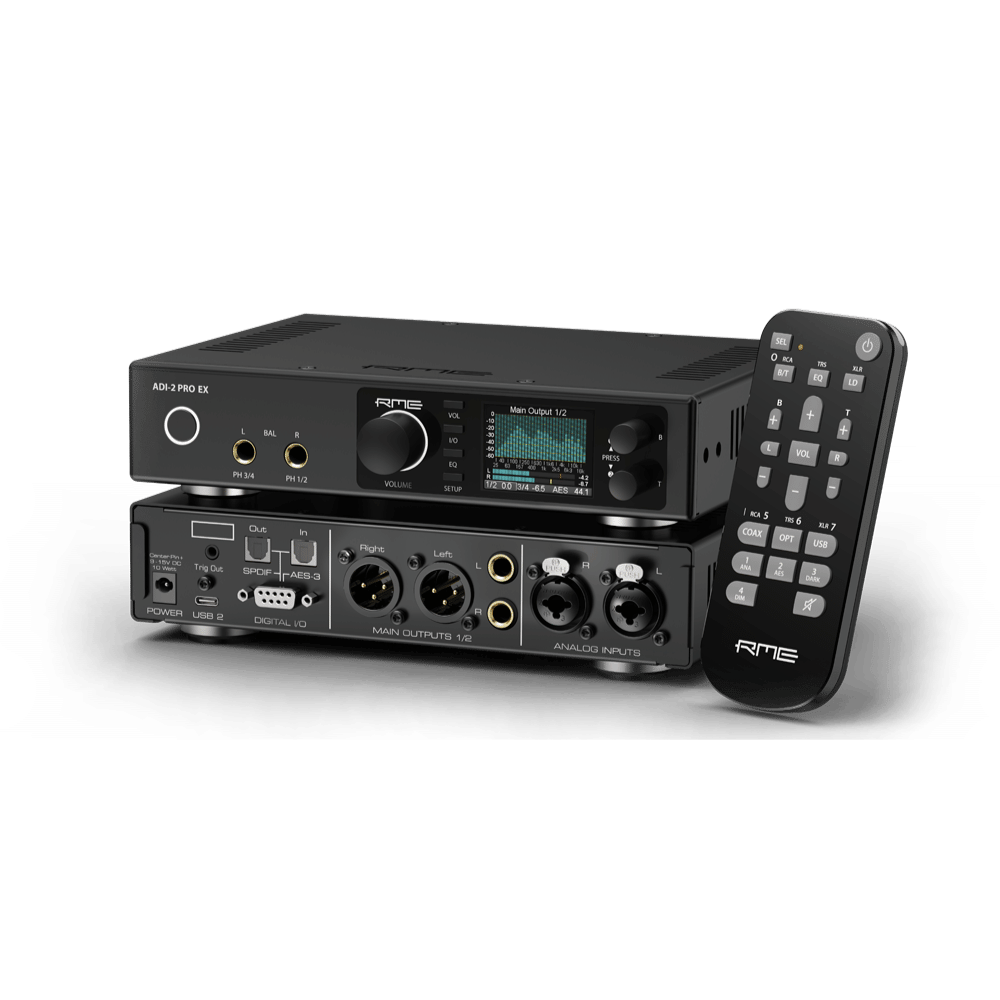

・ADI-2 Pro EX 本體
・遙控器
・可鎖式 NT-RME-13 通用電源供應器
・USB-C 線(1.8 m)
・AES / SPDIF breakout 線
