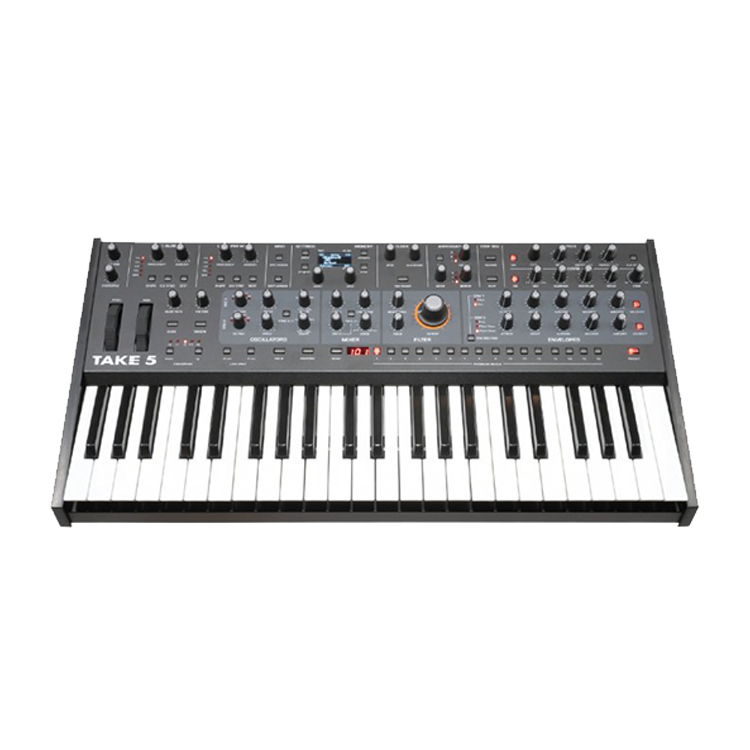

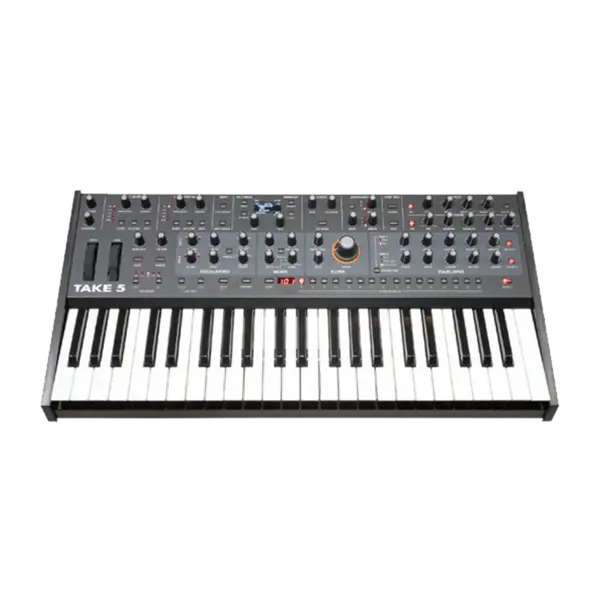

Sequentia Take 5，這是一款全新的設計且加入便於攜帶的設計的類比 VCO/VCF 五發聲數多聲道合成器，是一款對於合成器新手和需要更多演奏空間的專業音樂人都適合的合成器鍵盤！

• 作為一款全功能的減法合成器，Take 5 每聲道有兩個 VCO 和一個副振蕩器，一個來自Prophet-5 Rev 4 的經典設計， 4 極共振模擬濾波器、44 個全尺寸按鍵，搭配 Fatar 鍵台。它巧妙的分鍵功能使演奏者能夠將 3.5 個八度的鍵盤分成兩個獨立的演奏區，從而比許多其他設計更為緊湊的合成器鍵盤，獲得更廣泛的可演奏範圍。雙重數位效果和特別設計的 overdrive ，連續可變的波形塑造，以及前面板調整類比的 FM 功能，確保Take 5可以覆蓋從復古到現代的廣泛的音域。
• 功能的豐富性來自於 Take 5 的聲音引擎。兩個 VCO 提供傳統的正弦波、鋸齒波和脈衝波，而簡單的類比 FM 在需要時增加了泛音的複雜性、類似鐘聲的調變音色。承襲Prophet 5 的 4 極模擬濾波器以經典的方式塑造振蕩器和副振蕩器的聲音，而 overdrive 控制則又提供了提供更多的變化。為了獲得更多的溫暖，Vintage 的旋鈕設計為振蕩器、濾波器和不同聲音的 envelope 增加了微小的變化。
• Take 5 有兩個LFO（1 個 global LFO 和另 1 個單聲道 LFO），ADSR+ delay envelope ，雙數位效果器（一個 Reverb 和一套時間係／delay 效果器），一個單獨的 overdrive 效果，擁有廣泛的聲音調制可能性。一個 64-step 的多發聲數 sequencer 和多模式的琶音器使功能更加完整。
• 琴身尺寸為 63.5 cm x 32.4 cm x 11.2 cm ，重量為 7.7 kg，琴鍵為半配重 Fatar 鍵盤

詳細規格

OSCILLATORS

• Two analog VCOs per voice
• Continuously variable wave shape (sine, sawtooth, variable-width pulse) per oscillator
• Hard sync: oscillator 1 syncs to oscillator 2
• Square wave sub-octave generator (oscillator 1) per voice
• Keyboard tracking on/off for each oscillator
• Front-panel FM (frequency modulation)

MIXER

• Oscillator 1 amount
• Oscillator 1 sub-octave amount
• Oscillator 2 amount
• White noise/pink noise amount

LOW-PASS FILTER

• Four-pole, resonant, low-pass filter per voice, based on Prophet-5 Rev 4 design
• Filter can be driven into self-oscillation with the Resonance control
• Bi-polar filter envelope amount

ENVELOPES

• Two 5-stage envelope generators (ADSR + delay) with variable routing (filter, amplifier, auxiliary)
• Velocity modulation of each envelope amount
• Envelopes freely assignable to multiple modulation destinations

LOW FREQUENCY OSCILLATOR

• Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
• Clock sync (internal or external MIDI clock)
• Freely assignable to multiple modulation destinations

DIGITAL EFFECTS

• One dedicated reverb with damping, pre-delay, decay and tone
• One multi-effect with stereo delay, BBD delay, tape delay, chorus, flanger, phaser, ring mod, vintage rotating speaker, distortion, high-pass filter
• Dedicated Overdrive effect

VINTAGE KNOB

• Recreates the characteristics of vintage synthesizers by introducing parameter variations from voice to voice.

AFTERTOUCH

• Source: channel (mono) aftertouch with bi-polar amount
• Aftertouch freely assignable to multiple modulation destinations

CLOCK

• Master clock with tap tempo
• BPM control and display
• MIDI clock sync

ARPEGGIATOR

• Up, down, up+down, random, assign modes
• Syncs to MIDI clock
• Re-latching arpeggiation

SEQUENCER

• Polyphonic step sequencer with up to 64 steps with ties and rests

PERFORMANCE CONTROLS

• Full-sized, semi-weighted, 3.5-octave premium Fatar keyboard with velocity and aftertouch
• Spring-loaded pitch wheel with selectable range per program with independently adjustable upper and lower pitch wheel range transpose controls
• Low-split mode creates two independent performance zones with different octave ranges
• Hold switch latches held notes on
• Polyphonic glide (portamento)
• Unison (monophonic) mode with configurable voice count, from one to all five voices, and key modes
• Factory switch: when off, the front panel is live; what you see is what you hear

PATCH MEMORY

• 128 user and 128 factory

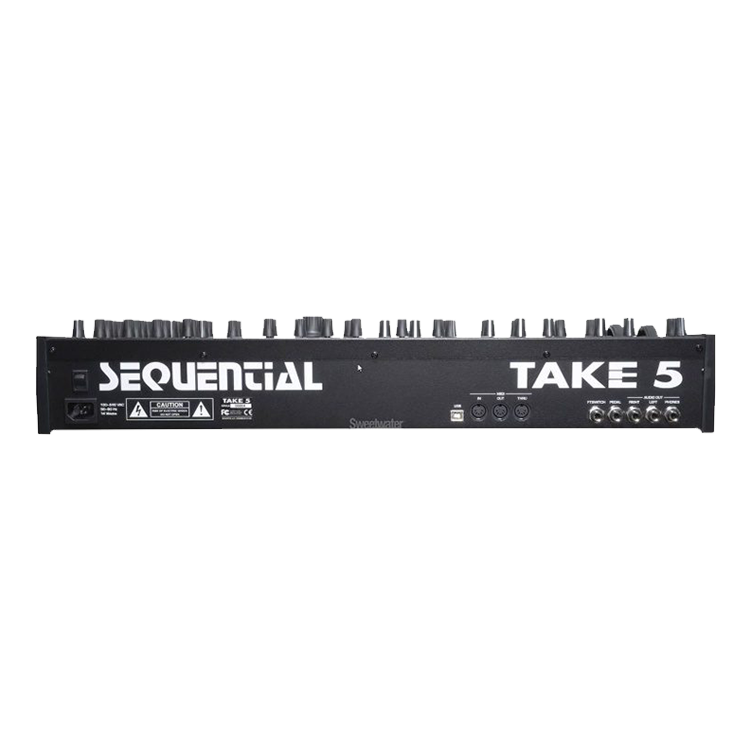

IN/OUT

• 1 MIDI In, 1 MIDI Out, and 1 MIDI Thru port
• USB port for bidirectional MIDI communication
• 1 Sustain/footswitch input
• 1 Expression pedal input
• Main stereo output (2 x 1/4″ phone jack)
• Headphone out (stereo 1/4″ phone jack)

POWER

• IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 14 watts maximum power consumption

PHYSICAL SPECS

• Premium, 3.5-octave, semi-weighted Fatar keyboard
• 25″ L x 12.75″ W x 4.4″ H (63.5 cm x 32.4 cm x 11.2 cm)
• Weight: 17 lbs (7.7 kg)
