4ms Row Power 25 (RP25)

滿 NT$ 5,000 全亞洲區免運費

促銷價 NT$ 3,400

分期資訊:
30 利率,每期 NT$ 1,133
60 利率,每期 NT$ 566

商品狀態:預購商品 (約 10~15 個工作天)

保固資訊:1 年保固 (不包含: 配件、線材、modular)
滿 NT$ 5,000 全亞洲區免運費
付款方式: 7 11 Family mart Hilife Ok Visa Jcb Atm Cash delivery

Row Power 25 [RP25]

The Row Power 25 is a clean, regulated, and protected power supply module for Eurorack systems. It requires a barrel-style power brick (15V – 20V DC) and supplies power to modules via flying bus cables, direction connection, and/or bus boards.

The Row Power 25 provides 25W of power for any eurorack modules (typically 4-10 modules*):

  • +12V @ 1.4A maximum, 1.0A recommended
  • -12V @ 0.8A maximum, 0.5A recommended
  • +5V @ 1.0A maximum, 0.8A recommended



*number of modules can vary depending on each module's power consumption.

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 25 can also be daisy-chained to Pods. Each Row Power and Pod will be independently regulated and protected for ultra-low cross-talk between rows.



Basic Features:

  • Two power jacks for daisy-chaining multiple Row Powers and Pods: a common laptop-style power brick could power 3-5 rows (typical)
  • On/off switch cuts power without interrupting the daisy-chain
  • LED light indicates module is on
  • Row Power 25 typically will provide enough power for 4-10 modules (this can vary, based on each module's power consumption)
  • Runs cool: Row Power 25 is efficient so it won't heat up your system. Electronics like to chill!

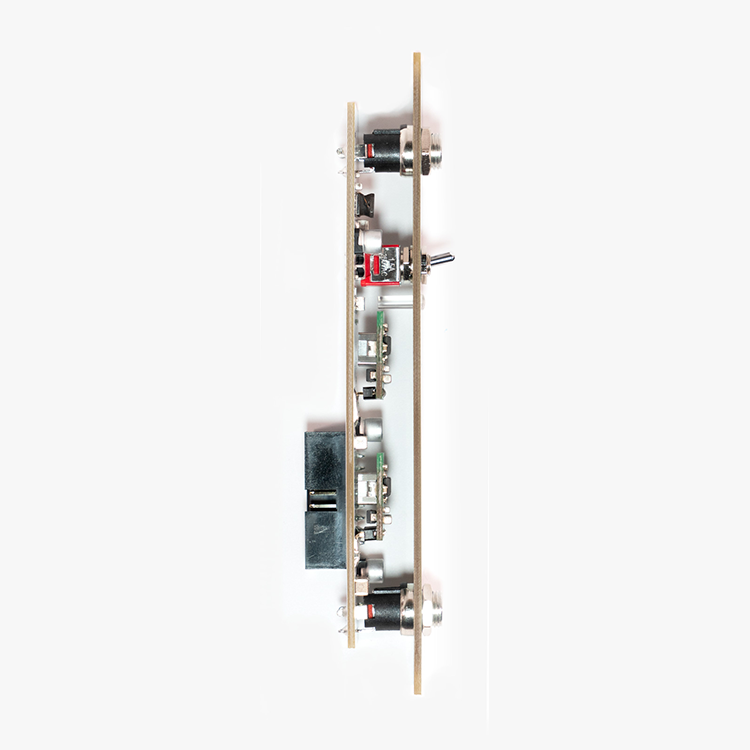

  • Skiff-friendly: only 25.6mm (1.01") with power connector installed.

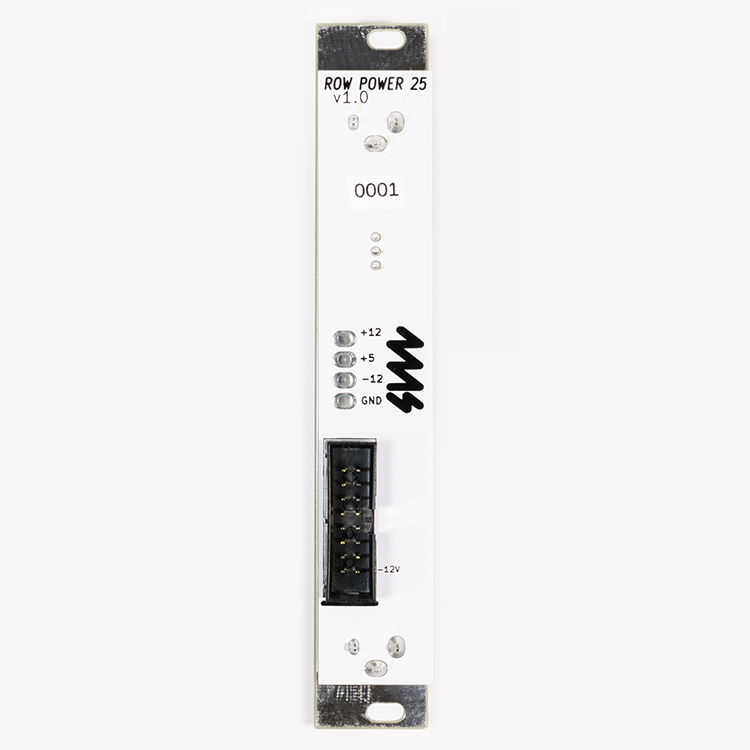

  • Includes set of easily soldered holes for custom distribution systems (by soldering wires or MTA156 connectors)





Electrical and Mechanical Specifications:

  • Module Size:
    • 4 HP Eurorack format module
  • Power Output:
    • +12V @ 1.4A maximum, 1.0A recommended
    • -12V @ 0.8A maximum, 0.5A recommended
    • +5V @ 1.0A maximum, 0.8A recommended
  • Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.



Maximum power output can be expected under normal operating conditions. Recommended power output is guaranteed under extreme temperature and limited airflow conditions.



Included with the Row Power 25:

  • (1) 16-to-16 pin power cable
  • (2) M3 Knurlie screws

Required (not included):

  • 15V - 20V DC power brick or barrel jumper cable to daisy-chain from a powered Pod or Row Power
  • Flying-bus cables, Bus Stick or other distribution system (for connecting Row Power 25 to multiple modules)
