Features

• 16 sine-based oscillators bound to intervals of a selected Scale
• 30 factory-programmed, user-writeable scales organized in three groups:
  • 12TET: all notes quantized to equal temperament, repeating over octaves
  • Octave: unquantized notes, repeating over octaves
  • Free: unquantized notes, repeating over the interval between the lowest and highest note
• A simple method to program ("Learn") your own scales manually or with a CV/Gate keyboard
• Three Twist phase distortion effects
• Three Warp wave distortion effects
• Three algorithms of Cross FM for modulating the oscillators with each other
• Mono or stereo output with selectable panning algorithm
• Freeze button and jack to freeze the frequency of some of the oscillators, with selectable algorithm
• Two 1V/oct inputs: Pitch (non-quantized), and Root (quantized)
• High-accuracy, temperature-stable, eight octave range (-2V to +6V), can be calibrated to any keyboard
• Six bi-polar CV inputs (-5V to +5V)
• Two gate inputs for automated Learning and Freezing

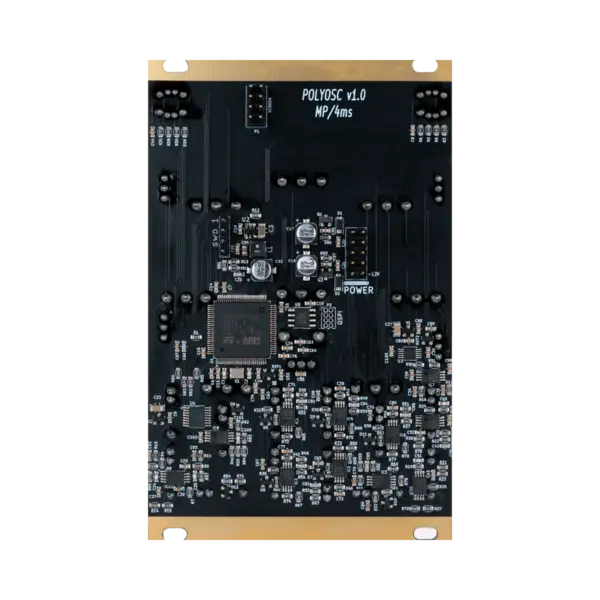

Electrical and Mechanical Specifications

• 16HP Eurorack format module

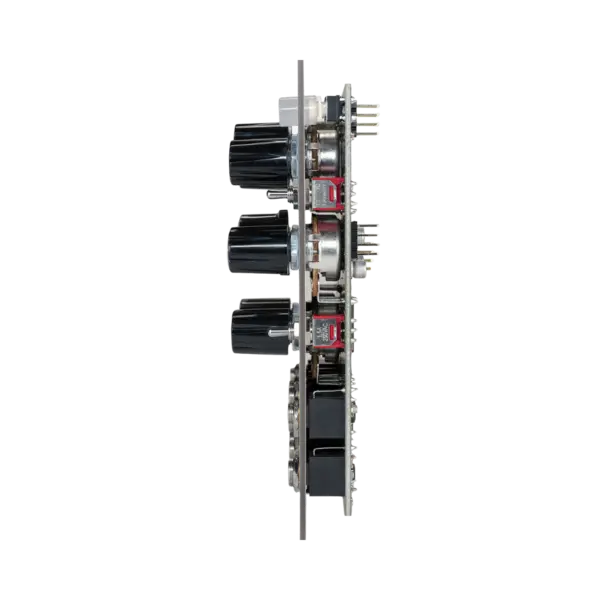

• 0.98" (25mm) maximum depth (including power cable)
• 10-pin to 16-pin Eurorack power header
• Power consumption
  • +12V: 114mA maximum
  • -12V: 45mA maximum
  • +5V: 0mA (not used)
• Audio outputs
  • Frequency range: 0Hz (DC) - 20kHz
  • Typical amplitude: 10Vpp
  • Maximum amplitude: 18.5Vpp
• 1V/oct inputs (Root and Pitch)
  • Voltage range: -2V to +6V (8 octave range)
  • Factory calibrated to 1.00V/oct
  • Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
• CV inputs (other than 1V/oct)
  • Voltage range: -5V to +5V
• Gate inputs
  • Trigger threshold: 2.5V
• User memory (non-volatile)
  • Scale slots: 30
  • Shift feature settings
  • 1V/oct calibration settings
