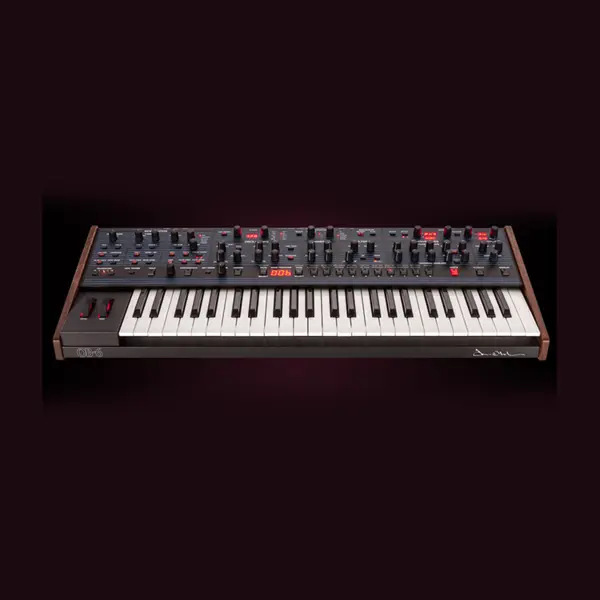

Sequential (Dave Smith) OB-6 鍵盤合成器

滿 NT$ 3,000 全台免運費

促銷價 NT$ 135,900

分期資訊:
30 利率,每期 NT$ 45,300
60 利率,每期 NT$ 22,650

商品狀態:預購商品 (約 10~15 個工作天)

保固資訊:1 年保固 (不包含: 配件、線材、modular)
滿 NT$ 3,000 全台免運費
付款方式: 7 11 Family mart Hilife Ok Visa Jcb Atm Cash delivery
加入慾望清單
已加入慾望清單

Watched 此商品被關注 7578 次

兩位傳奇,一台經典樂器 - Sequential (Dave Smith) OB-6

OB-6 是由兩個對複音合成器歷史發展影響深遠的設計者 - Dave Smith 與 Tom Oberheim 共同研發。

最經典的 Oberheim SEM 聲音被完整的保存在其中,再加上 Dave Smith 系列擁有最適合類比合成器使用的效果器與複音序列器,琶音器。這台六發聲數的 OB-6 將經典音色完美進化,為類比合成器帶來新的樣貌。

Sequential OB-6 官方介紹影片



詳細規格

OSCILLATORS
  • Two discrete VCOs per voice
  • Continuously variable wave shape (sawtooth and variable-width pulse, plus triangle on oscillator 2) per oscillator
  • Pulse width per oscillator
  • Hard sync: oscillator 1 syncs to oscillator 2
  • Square wave sub-octave generator (oscillator 1) per voice
  • Low frequency mode (oscillator 2)
  • Keyboard tracking on/off (oscillator 2)
  • Oscillator detune amount for increased tuning instability, from subtle to extreme
MIXER
  • Oscillator 1 amount
  • Oscillator 1 sub-octave amount
  • Oscillator 2 amount
  • White noise amount
STATE-VARIABLE FILTER
  • Two-pole, resonant, filter per voice with low-pass, high-pass, band-pass, and notch functionality inspired by the original Oberheim SEM filter
  • Bi-polar filter envelope amount
  • Velocity modulation of envelope amount
  • Keyboard tracking: off, half, full
FILTER ENVELOPE
  • Four-stage (ADSR) envelope generator
  • Velocity modulation of envelope amount
AMPLIFIER ENVELOPE
  • Four-stage (ADSR) envelope generator
  • Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
  • Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)
  • Clock sync (internal or external MIDI clock)
  • Initial amount
  • Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 1 and 2 pulse width, filter cutoff, filter mode, amp
X-MOD
  • Sources: filter envelope (bi-polar) and oscillator 2 (bi-polar)
  • Destinations: oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, filter cutoff, filter mode, normal to bandpass filter
AFTERTOUCH
  • Source: channel (mono) aftertouch with bi-polar amount
  • Destinations: oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, filter envelope amount, filter mode
CLOCK
  • Master clock with tap tempo
  • BPM control and display
  • MIDI clock sync
ARPEGGIATOR
  • Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
  • One, two, or three octave range
  • Up, down, up/down, random, and assign modes
SEQUENCER
  • Polyphonic step sequencer with up to 64 steps and rests
EFFECTS
  • Stereo analog distortion
  • Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifters, and ring modulator
  • Delay sync
  • True bypass maintains fully analog signal path when digital effects are off
PERFORMANCE CONTROLS
  • Full-sized, semi-weighted, 4-octave keyboard with velocity and aftertouch
  • Backlit pitch and mod wheels
  • Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
  • Transpose controls for an 8-octave range
  • Hold switch latches held notes on
  • Polyphonic portamento
  • Unison (monophonic) mode with configurable voice count, from one to all six voices, chord memory, and key modes
  • Manual switch: when on, the front panel is live; what you see is what you hear
PATCH MEMORY
  • 500 user and 500 factory programs in 10 banks of 100 programs each
  • Direct program access, including single-button access to the current set of 10 programs
IN/OUT
  • Left/mono and right audio outputs (2 x 1/4” phone jack)
  • Headphone output (stereo, 1/4” phone jack)
  • MIDI in, out, and thru ports
  • USB for bidirectional MIDI communication
  • Filter cutoff expression pedal input
  • Volume expression pedal input
  • Sustain footswitch input
  • Sequencer start/stop footswitch input
POWER
  • IEC AC power inlet for internal power supply
  • Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
外觀
  • 兩側立座以胡桃木打磨製成
  • 長 * 深 * 高: 80.7 cm * 32.3 cm * 11.7 cm
  • 重量: 9.5 kg
