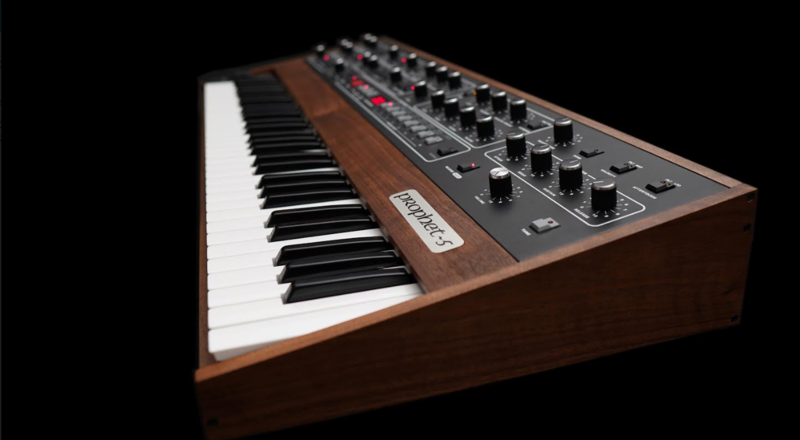

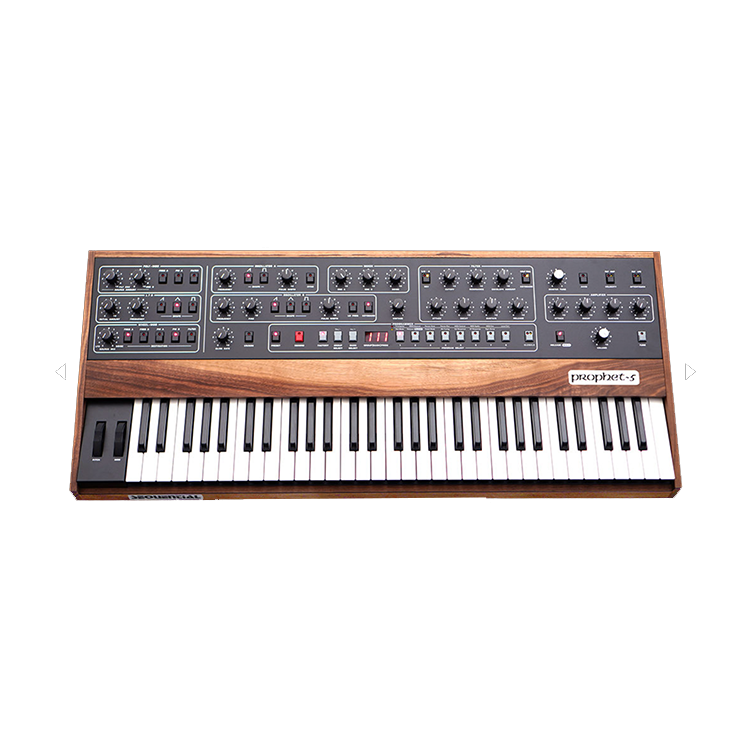

傳奇回歸：經典 Prophet 5 類比複音合成器！

最新的 Prophet 5 是 Dave Smith 所發布的類比複音合成器。正如 Dave 所說，它是所有 Prophet 系列中最好的，透過真正 Curtis 模擬 VCO 以及 Filter （與  Rev3 相同）體現了傳奇合成器的三個版本：Rev 1、Rev2、Rev3。作為 Dave Rossum 設計的新型 2140 low pass filter，如同在最原始的 Rev1  以及 Rev2 一樣。Rev 開關可以在兩種 Filter 設計之間進行切換。這台能刷新你想要類比合成器音色的眼界，具有最原始音樂的真實音色，以及高耐用性。

詳細規格

振盪器相關

• Two authentic CEM 3340 VCOs per voice
• Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse.
• Pulse width per oscillator
• Hard sync: oscillator 1 syncs to oscillator 2
• Low frequency mode (oscillator 2)
• Keyboard tracking on/off (oscillator 2)

混音器

• Oscillator 1 amount
• Oscillator 2 amount
• White noise amount


濾波器 LOW-PASS FILTER

• Four-pole, resonant, low-pass filter per voice
• Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
• Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
• Rev3 filter is a Doug Curtis-designed CEM 3320
• Filter can be driven into self-oscillation with the Resonance control
• Keyboard tracking: off, half, full


FILTER ENVELOPE

• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount

AMPLIFIER ENVELOPE

• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount

低頻振盪器（LFO）

• Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
• Both Initial Amount and mod wheel control
• Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff

複音模式

• Sources: filter envelope and oscillator B
• Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff

復古經典旋鈕

• Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s.

AFTERTOUCH

• Channel (mono) aftertouch
• Destinations: filter cutoff frequency, LFO amount

演出控制

• Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
• Mod wheel
• Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
• Polyphonic glide (portamento)
• Unison (monophonic) mode with configurable voice count, from one to all five voices and key modes
• Preset switch: when off, the front panel is live; what you see is what you hear

使用者自訂記憶 PATCH MEMORY

• 200 user and 200 factory programs in 5 banks of 40 programs each
• Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

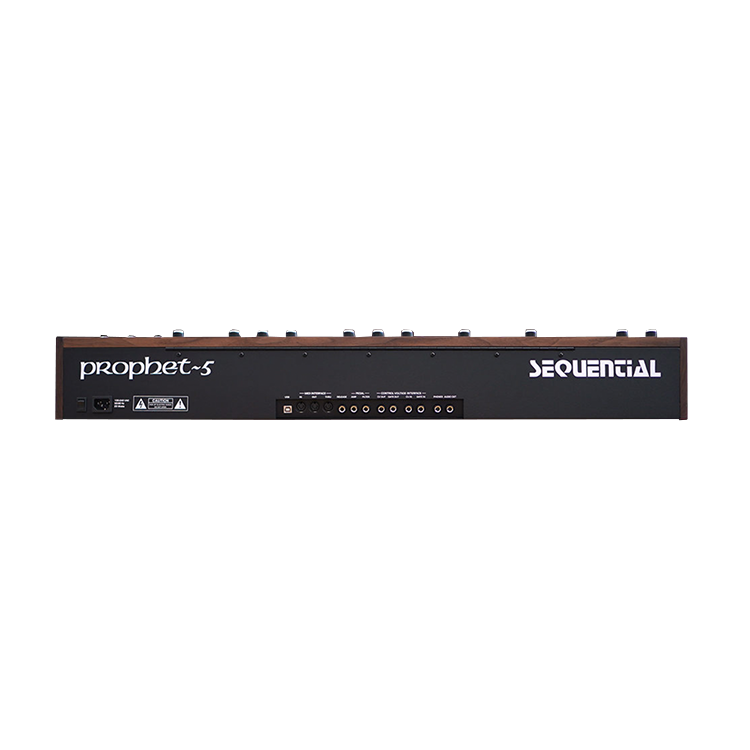

輸入/輸出

• Mono output (1 x 1/4” phone jack)
• Headphone output (stereo, 1/4” phone jack)
• MIDI in, out, and thru ports
• USB for bidirectional MIDI communication
• Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation.
• Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the Prophet-5. Outputs a 15-volt on/off used to gate the envelopes of an external synth.
• Low-pass filter cutoff expression pedal input
• Volume expression pedal input
• Sustain footswitch input

供電

• IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5: 20 watts maximum power consumption.

相關尺寸

• 37.5” L x 16.4 W x 4.9″ H (95.25 cm x 41.6 cm x 12.4 cm)
• 31 lbs (14.06 kg)
• Roadworthy all-steel construction with premium black walnut heartwood body and trim
