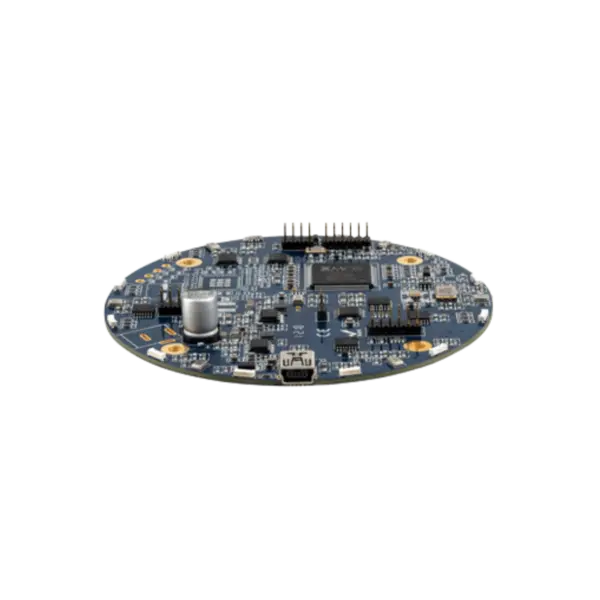

miniDSP UMA-8 V2 MEMS Mic Array

Promo Price
NT$  4,950
Earn 49 points with this purchase
Free shipping over NT$3,000
1-year warranty & repair
3/6-month 0% interest
Installment Info:
3 months 0 interest, per month NT$ 1,650
6 months 0 interest, per month NT$ 825
預購商品 (約 10~15 個工作天)
NT$ 4,950
UMA-8 V2 MEMS Mic Array miniDSP UMA-8 V2 MEMS Mic Array NT$ 4,950

UMA-8 v2 USB 陣列式麥克風模組

miniDSP UMA-8 V2 MEMS Mic Array 是一款 Array Mic 陣列式麥克風,為 Multi-Channel USB 麥克風陣列,基於 XMOS Vocal Fusion 系列(XVF3000)晶片打造。

  • 改良自適應波束成形:提供精確的聲音追蹤。
  • 全雙工聲學回音消除(AEC)及強制輸入功能(Barge-in):即使在嘈雜環境中也能實現高效的聲音辨識。
  • 噪聲抑制與自動增益控制(AGC):優化語音質量。

該裝置採用七個高性能 MEMS 麥克風,配置成圓形排列,適用於各種應用的高品質語音捕捉。UMA-8 整合 DSP 處理器,支援多種語音處理演算法,包括波束成形、噪聲抑制、回音消除以及去混響功能。作為完全符合 UAC2 標準的音訊接口,UMA-8 在 Mac/Linux 系統下無需驅動程式支援,Windows 系統則支援 ASIO 驅動程式。

產品特色

  • 多通道 USB 麥克風陣列:專為語音命令設計。
  • 內建 DSP:支援波束成形、噪聲抑制、回音消除、去混響、方向來臨判斷(DOA)及語音活動檢測(VAD)。
  • 11 顆 RGB LED 環形配置:提供狀態指示。
  • 高品質 MEMS 麥克風:使用 Knowles SPH1668LM4H。
  • 彈性韌體選項:DSP 模式支援 2ch 波束成形、RAW 模式支援 8ch MEMS 音訊。
  • 擴充接口:支援額外的 PDM 麥克風連接、I2S 輸入/輸出擴充和 GPIO。

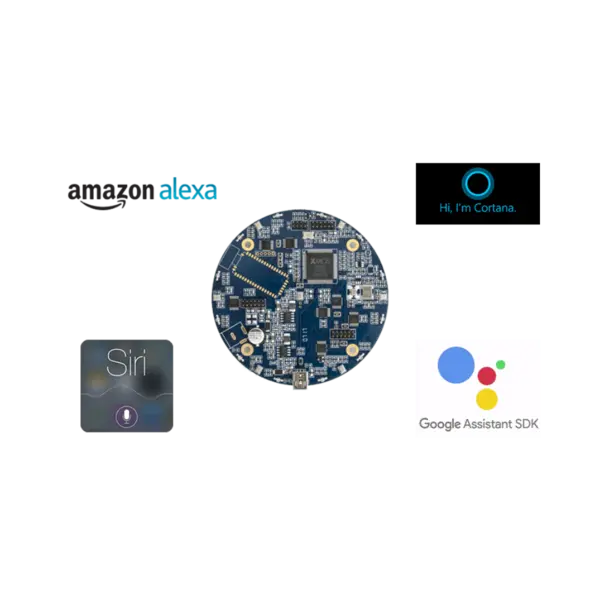

  • 完整的應用指南:支援 Google SDK、Alexa-Pi、Cortana、Siri、IBM Watson 和 Matlab,並持續更新中。

應用範圍

從 DIY 愛好者到 OEM 製造商,UMA-8 平台經過精心設計,可靈活適應不同的韌體、軟體和硬體需求,隨著您的應用不斷成長。

UMA-8 麥克風陣列應用說明

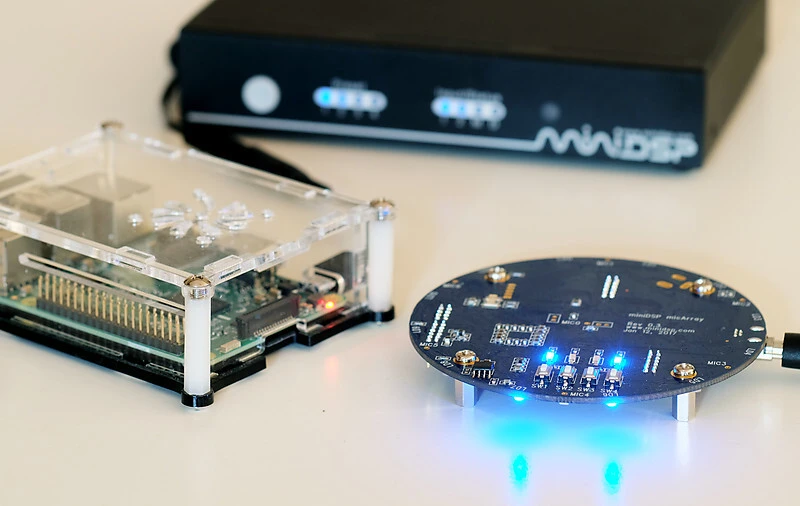

UMA-8 + AlexaPi 在 Raspberry Pi 上構建 DIY Alexa
使用 miniDSP UMA-8 麥克風陣列搭配方向檢測、回音消除和噪聲抑制技術,可用於多種應用場景。以下說明將展示如何結合 UMA-8 與 Amazon Alexa,構建您的個人化虛擬助理“Echo”。

uma 8 alexa photo

UMA-8 + Raspberry Pi + nanoAVR 展示

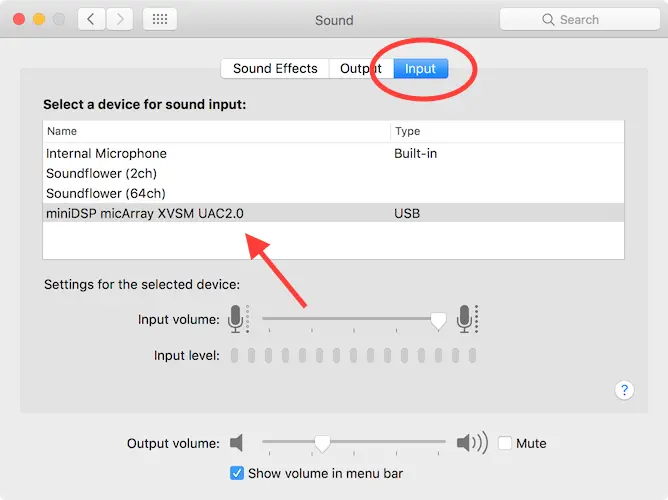

UMA-8 + Siri
依照我們的步驟指南,將 Siri 與 UMA-8 麥克風陣列結合運行。

uma 8 siri cortana siri

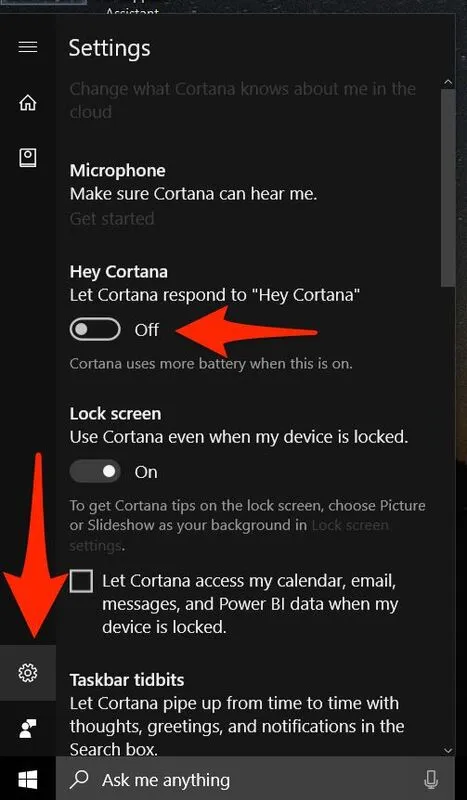

UMA-8 + Microsoft Cortana
在 Windows 系統上充分利用 UMA-8 的波束成形功能,實現與 Cortana 的高效互動。

hey cortana

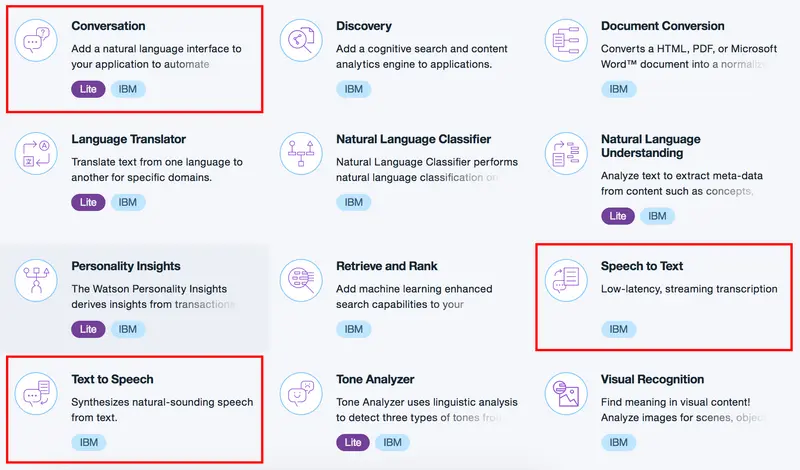

UMA-8 + IBM Watson = 聊天機器人
本指南將分步介紹如何利用 Watson 與 UMA-8 架設聊天機器人,實現高效的對話體驗。

BM S3

你能夠在各種平台上發揮 UMA-8 的語音處理能力,實現自訂虛擬助手與聊天機器人。

商品規格

USB 引擎
XMOS XVF3000 多核心 USB 音訊處理器
麥克風
7 顆 Knowles SPH1668LM4H MEMS
錄音模式
8 通道 RAW / 立體聲 DSP
解析度與取樣率
24bit @ 11/16/32/44.1/48 kHz
波束成形衰減
最高 20 dB
回聲消除衰減
最高 80 dB
驅動支援
macOS 免驅動 / Windows Thesycon ASIO / Linux ALSA 2.0
最大 SPL 與失真
1.6% @ 120 dB SPL
訊雜比 SNR
65 dB
LED
12 顆 RGB
電源供應
USB 供電
尺寸
直徑 90 mm,高 20 mm(含 LED 環)/ 14 mm(不含)
展開完整規格(4 項)
噪音抑制衰減
最高 20 dB
去混響衰減
最高 20 dB
音訊播放輸出
單聲道 I2S 輸出
擴展連接器
2 組 12-pin,2 mm 間距擴展端口 + XMOS JTAG 連接器
