Functions

There are currently 112 distinct algorithms. The first 16 ('classic disting') are:

• Precision Adder with integer voltage offsets
• Four Quadrant Multiplier with integer multiply/divide
• Full-wave Rectifier
• Minimum/maximum
• Linear/Exponential Converter
• Quantizer with selectable scales
• Comparator with adjustable hysteresis
• Dual Waveshaper wavefolder and triangle-to-sine shaper
• Sample and Hold with noise source and adjustable slew rate
• Slew Rate Limiter with linear and exponential slew
• Pitch and Envelope Tracker
• Clockable Delay/Echo
• LFO with through zero frequency control and waveshaping
• Clockable LFO with multiply/divide and waveshaping
• VCO with linear FM sine and saw outputs
• VCO with waveshaping saw/triangle and pulse outputs

The remaining algorithms are:

• Counter for syncing sequencers lacking a reset
• Voltage Controlled Delay Line vibrato/chorus/flange effects
• Clockable Ping Pong Delay
• Clockable Ping Pong Delay with input pan control
• Resonator for drum synthesis
• Vocoder 12 band
• Phaser up to 10 stages
• Bit Crusher
• DJ Filter
• Tape Delay with voltage controlled tape speed
• Waveform Animator
• State Variable Filter smoothly variable filter type
• LP/HP Filter
• LP/BP Filter
• BP/HP Filter
• BP/Notch Filter
• AR Envelope
• AR Envelope & VCA
• Dual AR Envelope
• Stereo Compressor
• Side-chain Compressor
• Mono Compressor
• Euro to Buchla Converter
• Buchla to Euro Converter
• Clockable AD Envelope (with mute)
• Clockable AD Envelope (with gate)
• Clockable AD Envelope (with trigger)
• Clockable AD Envelope & VCA
• Shift Register Random CVs
• Shift Register Random Quantized CVs
• Shift Register Random Triggers
• Shift Register Random Dual Triggers
• ES-1 Emulation
• ES-2 Emulation
• Pitch Reference
• Frequency Reference
• Tuner
• Clock (receiving/generating MIDI clock, analogue clocks, or internal clock)
• MIDI/CV
• CV/MIDI
• Crossfade/Pan
• Dual Sample and Hold
• Dual Quantizer (Z scale)
• Dual Quantizer
• Dual Euclidean Patterns
• Dual Delayed Pulse Generator
• Noise
• Quantizer 2 with diatonic intervals
• Audio Playback
• Clocked Audio Playback
• Audio Playback with V/Oct
• Audio Playback with Z Speed
• Audio Playback with Reverse
• Audio Playback with Scrub
• Dual Audio Playback
• Dual Audio Playback with Z Speed
• MIDI File Playback (Clocked)
• Multisample 2 Audio Playback
• MIDI File Playback (Free Running)
• Audio Playback with End CV
• Audio Recorder
• Multisample Audio Playback
• Mono Audio Recorder
• Audio Playback with Crossfade
• Wavetable VCO
• Clockable Wavetable LFO
• Wavetable Waveshaper
• Clockable Wavetable Envelope
• Programmable Quantizer
• Clockable SD Delay
• Stereo Clockable SD Delay
• Stereo Clockable SD Delay (Z clock)
• Stereo Reverb
• Mono-to-Stereo Reverb
• Dual Reverb
• Dual Vowel Filter
• Stereo Chorus
• Mono Chorus
• Mixer
• Gate
• Delayed LFO
• Scaled LFO
• Logic
• Half-wave Rectifier
• Stereo Filter
• Stereo Tape Delay
• Granular Pitch Shifter
• Chaos
• Switch
• Rotary
• Attenuverter/Offset
• Low Pass Gate
• Pulsar VCO
• Phase Shifter
• Frequency Shifter
• Clockable SD Ping Pong

Specifications

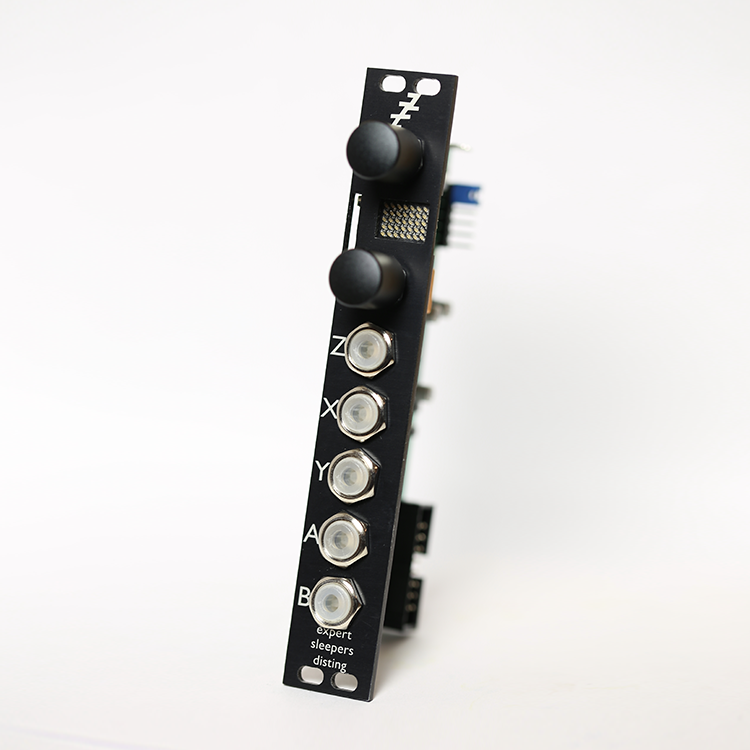

The disting mk4's specifications are as follows:

• Panel width: 4HP
• Module depth: 42mm
• X & Y inputs, A & B outputs
  • Sample rate: 75kHz
  • ADC: 24 bit, THD+N -93dB, Dynamic range 99dB, SNR 99dB
  • DAC: 24 bit, THD+N -94dB, Dynamic range 105dB, SNR 104dB
• Z input sample rate: 75kHz
• CPU: Microchip PIC32MX at up to 50MHz
• Current draw: 51mA on the +12V rail, 19mA on the -12V rail

The front panel is drilled for both Doepfer and Analogue Systems mounting holes (using a 'slot' rather than a single round hole). The power connector is a Doepfer standard 16 way IDC, with -12V furthest from the top of the board.
