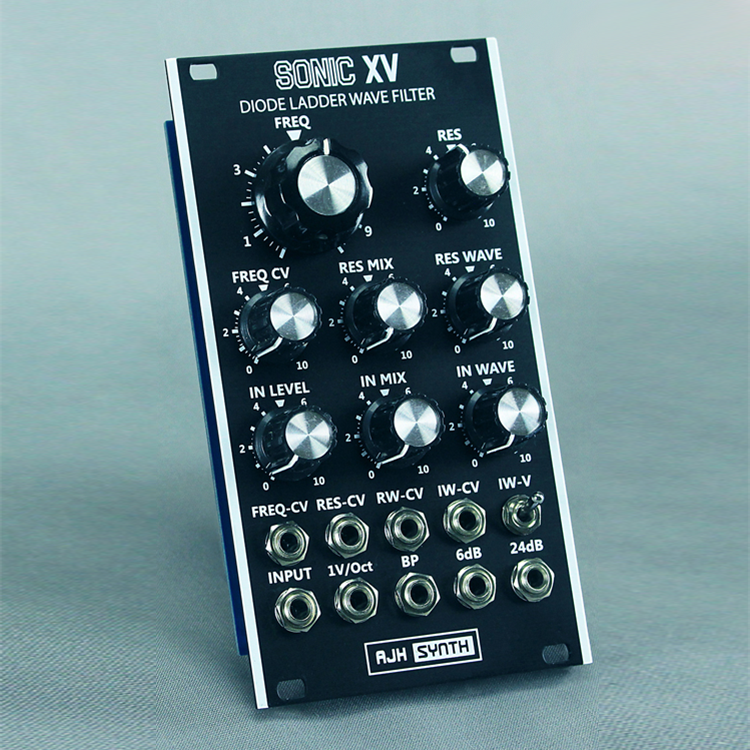

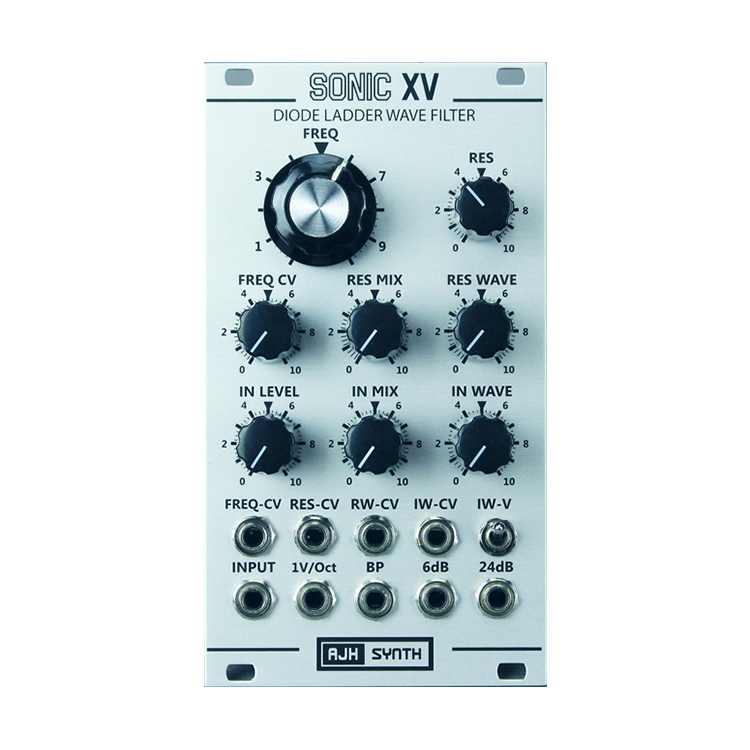

AJH Synth Sonic XV Diode Ladder Filter

滿 NT$ 3,000 全台免運費

促銷價 NT$ 12,000

分期資訊:
30 利率,每期 NT$ 4,000
60 利率,每期 NT$ 2,000

商品狀態:請先選擇商品

保固資訊:1 年保固 (不包含: 配件、線材、modular)
滿 NT$ 3,000 全台免運費
付款方式: 7 11 Family mart Hilife Ok Visa Jcb Atm Cash delivery

The Sonic XV Eurorack module is a four pole Diode Ladder Filter, featuring the circuitry and sound of the Musonics Sonic V synthesiser, which has a quite different character from transistor ladder filters. In addition to the regular 24dB Low Pass output we have added a 6dB Low Pass output and a Bandpass output, along with full voltage control of the resonance.

Two waveshapers have been added to hugely increase the sonic versatility of this module. There is a breakpoint based wavefolder on the input, with drive level that can be manually adjusted or voltage contolled. A bias control switch allows extra waveshape variations.

A second waveshaper is connected to the resonance circuit, which adds distortion and waveshaping to the resonance loop signal, again the drive can be adjusted manually or under full voltage control. A wet/dry mix control allows resonance waveshaping to be added from 0 to 100%.

These additions take the diode ladder fllter core way beyond it’s original function, it becomes a “filter” module that can add harmonics and shape waveforms rather than simply filtering them. With four independant CV inputs very complex filtering and waveshaping sounds become possible.



Module Width: 14hp

Module Depth: 24mm (34mm with power cable)

Current Usage: 70mA Positive, 55mA Negative
