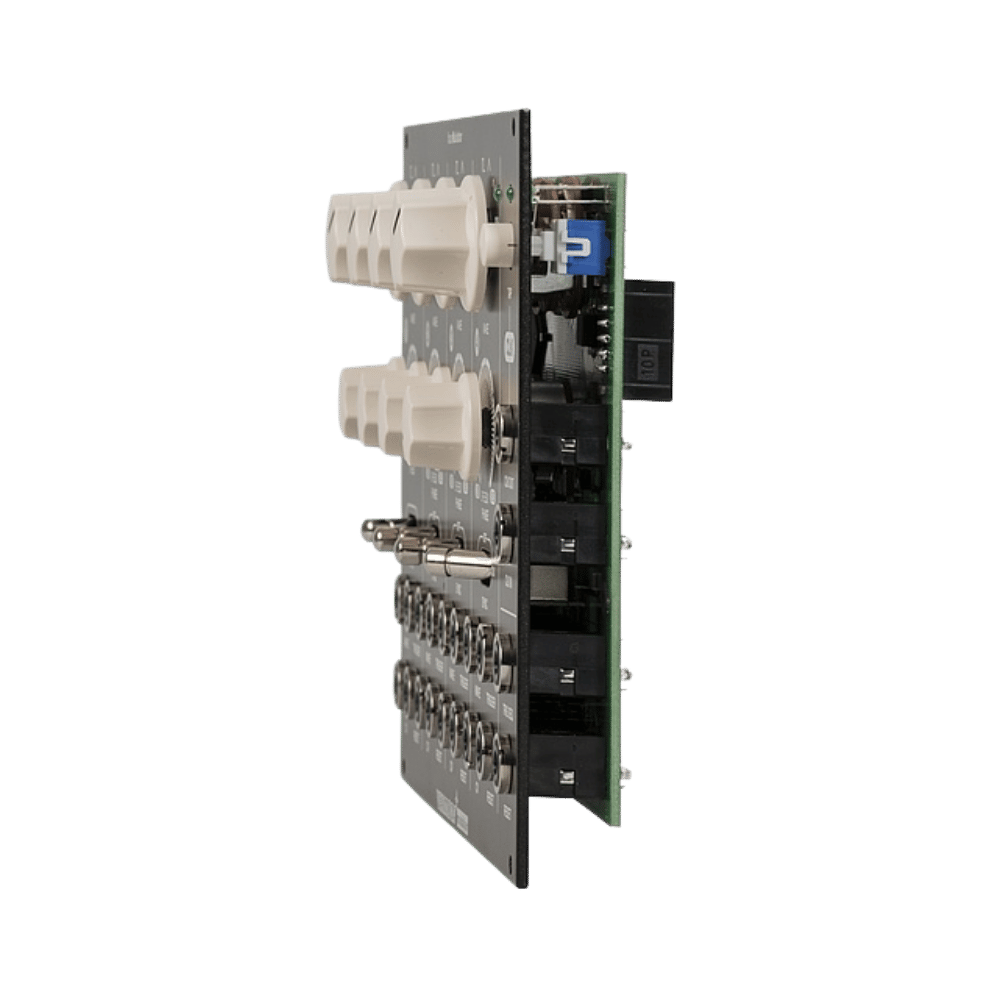

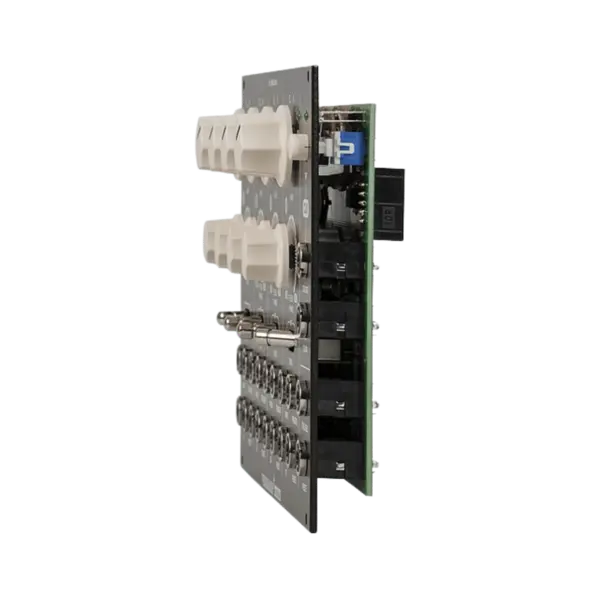

With fourMulator we created a digital quad-LFO-module for the Eurorack-modular standard offering a lot more than typical cyclic modulations. Because of the individual modulators’ (LFOs) ability to sync to a common master clock, you are able to both create individual sound movements or complex and rhythmical modulation structures.
Every LFO offers a choice of six wave forms: ascending or descending saw tooth, square, triangle, sine and a random curve (Sample & Hold). These oscillate in frequencies between 0.05Hz (20 seconds) and approximately 100Hz – fast enough for sonic alienation of oscillators, filters and VCAs. Each modulator offers individual wave-form- and trigger-outputs. The latter output a trigger impulse with every restart of the wave form. In addition, individual reset- and CV-inputs allow adding further manipulations from externally or within fourMulator.
The four modulator sections work independently generally, but may be synchronized to a clock-signal.
Two or more synchronized modulators oscillate at the same frequency, but not necessarily at identical phase. A synced modulator may be shifted by up to 180° – a half-cycle - to its neighbor. This way, you may easily create counter-rotating modulations. And by using the CV-inputs for phase modulation, even more complex structures become possible.
When being synchronized to a clock, the modulators oscillate with defined but adjustable clock divisions to the reference. Here too, being able to modulate the dividers by a control-voltage, highest-level versatility is guaranteed.
Both sync-modes can finally be combined. This way, you may synchronize one modulator to a reference clock, while it simultaneously serves as a master for its right neighbor.
CLOCK generator (CLK)
fourMulator has a clock-generator integrated. Its tempo can be set by using the TAP-button but also by using an external clock reference.
- Frequency range: 0.05 Hz .. 100 Hz
- Control elements: WAVE, SPEED, SYNC
- WAVE outputs: -5 V .. +5 V
- TRIGGER outputs: +12 V, 10 ms
- CV inputs: -5 .. +5 V
- RESET inputs: min. +3.5 V, max. +12 V
- Control elements: TAP button
- CLK OUT output: +12 V, 10 ms
- CLK IN input: min. +3.5 V, max. +12 V
- TRIG SEQ output: +12 V, 10 ms
- RESET Eingang: min. +3.5 V, max. +12 V
- +12 V: 120 mA
- -12 V: 10 mA
Dimensions / Weight
- Width / Height: 34 HP (ca. 173 mm) / 3 U
- Depth: 25 mm
- Weight: 365 g
