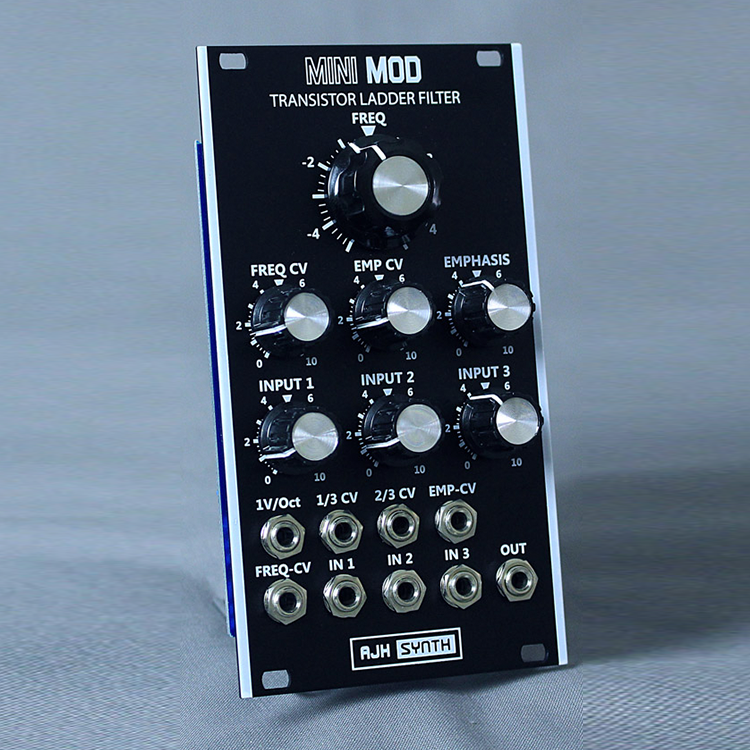

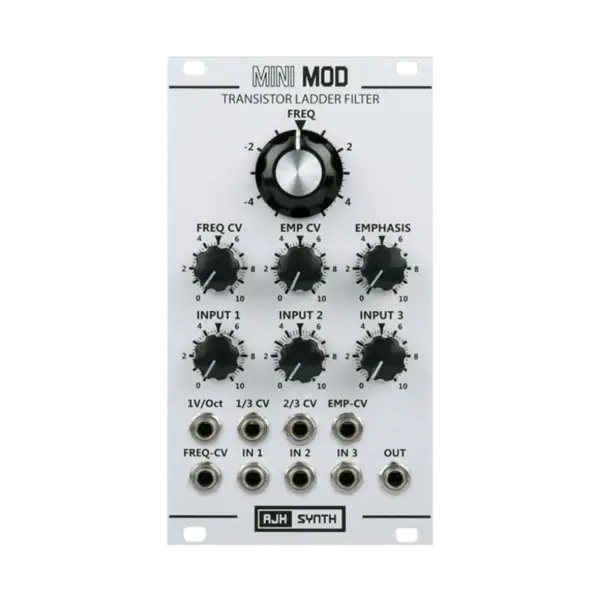

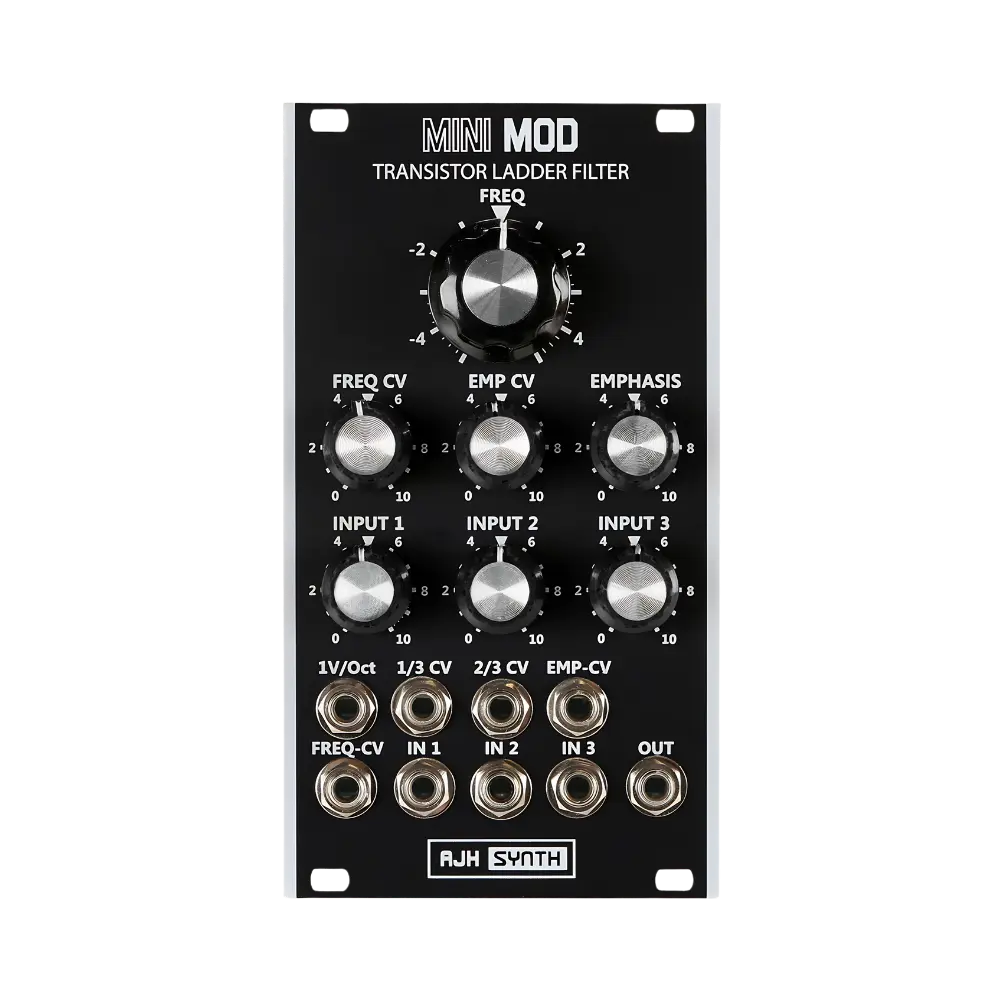

AJH Synth MiniMod VCF

滿 NT$ 3,000 全台免運費

促銷價 NT$ 9,700

分期資訊:
30 利率,每期 NT$ 3,233
60 利率,每期 NT$ 1,616

商品狀態:請先選擇商品

保固資訊:1 年保固 (不包含: 配件、線材、modular)
滿 NT$ 3,000 全台免運費
付款方式: 7 11 Family mart Hilife Ok Visa Jcb Atm Cash delivery

The stuff of legends, the Moog transistor ladder filter changed  the face of the musical landscape forever.  The MiniMod VCF is a faithful replica of the 24db/octave low pass filter used in the early Model D synthesiser.

There is a three channel input mixer and a nice large filter cutoff control, along with “1/3” and “2/3” CV inputs to emulate the action of the original VCF keyboard switches, apply 1v/oct to either of these inputs and the VCF keyboard tracking will be the same as the original with Keyboard 1 (1/3) or 2 (2/3) engaged, or use the 1v/oct input to emulate both switches selected. There is a variable Exponential CV input which is about 30% more sensitive than the 1v/oct input, this allows some nice over modulation effects.

We have added Voltage Controlled Resonance (Emphasis) in addition to manual Emphasis control. This uses a vactrol as the control element. The fast vactrol used allows modulation speeds up into the audio range. The filter will of course self resonate and act as a sine wave oscillator too.

There is also an overdrive facility which can be selected with an onboard jumper. This allows the input to the filter core to be substantially overdriven, great for adding a bit of extra dirt to the sound.



Module Width: 14hp

Module Depth: 26mm

Current Usage: 45mA Positive, 30mA Negative
