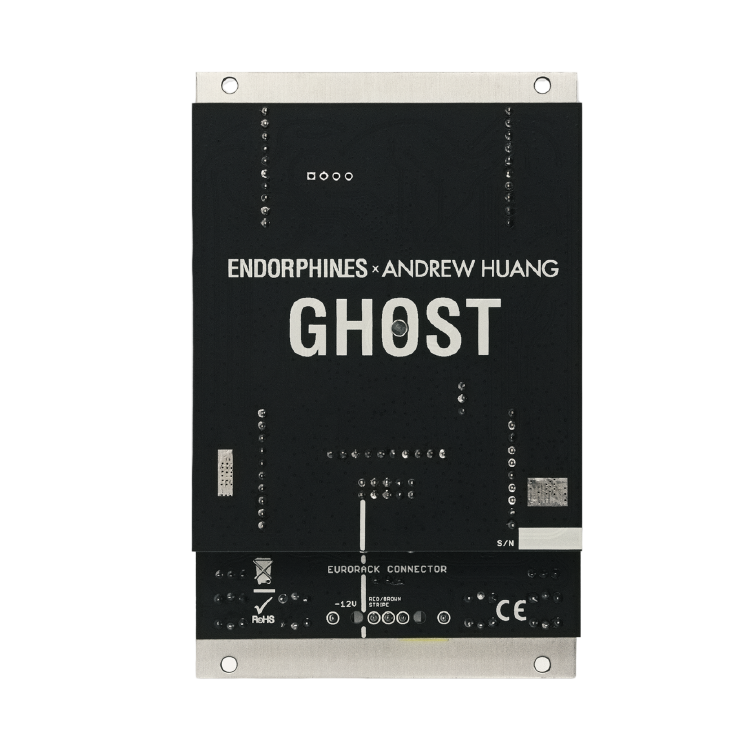

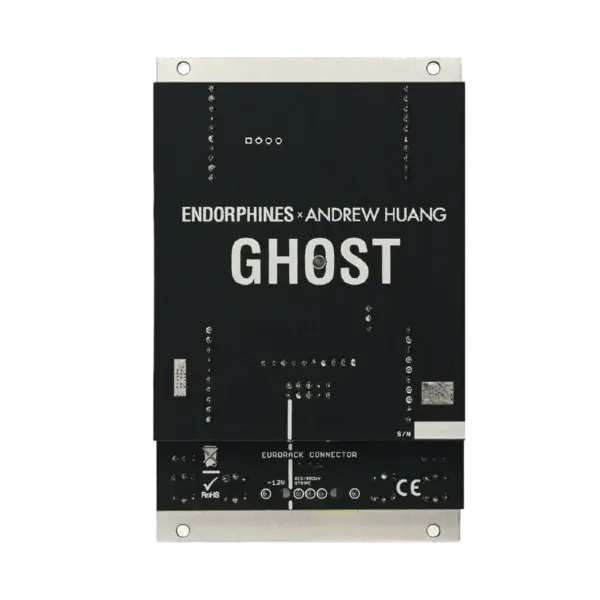

ENDORPHIN.ES X ANDREW HUANG

Endorphin.ES 這次與聞名全球的音樂製作人 Andrew Huang 合作，以實際使用 Eurorack 模組化合成器時進行音樂製作時的需求，打造一顆絕對實用、滿載豐富功能於一身的 Audio Processor - GHOST

產品特色

24 BIT AUDIO I/O, BIT-CRUSHER AND SAMPLE-RATE REDUCER WITH THE NEW V3 FIRMWARE

• 可自由 Patch 的 Audio Processing 區塊，憑藉直覺即可打造令人驚豔的 Audio 變化

• 創造立體聲效果：將 Delay / Reverb / Filteer / Distortion 等效果輕鬆加入原有 Audio 中

• 新世代 ARM Cortex - M7 處理器 (With 96 kHz 32 bit)

• Lush hall with shimmer and freeze and whooshing reverse reverbs with tone control and pre-delay

• 使用 Input Trigger 執行 Audio Sidechaine

• Single Band Compressor

• 零延遲 Feedback Filters: Bipolar low-pass / High-pass / Band-pass / Comb Filter (With Resonator)

• tap delay with external clock and clock divider, 1v/oct time control for Karplus-Strong, looper, tone control, various taps settings with up to 2,5 sec. maximum delay time

• 8x oversampled distortion algorithm

• pre- and post- VCA controls, input Tone and output Volume/Mix controls with extra gain/drive reserve

外觀詳細規格

• 電源供應：

  • 135 mA +12V

  • 35 mA -12V

  • 0 mA 5V

• 外觀

  • 16 HP

  • 25 mm / 1″ deep with power ribbon cable connected
