ZOOM LiveTrak L-6 Max 數位混音錄音機|6 軌輸入、USB 介面、智慧手機錄製整合的行動製作中心

Zoom LiveTrak L-6 Max 是一款 USB Type-C 錄音介面,整合樂器輸入、麥克風前級、獨立耳機監聽、USB 多軌介面與行動裝置錄音功能於單一機身。

ZOOM LiveTrak L-6 Max 是一款為音樂創作、Podcast 製作、直播與小型演出量身打造的六軌數位混音與多軌錄音工作站。延續 ZOOM LiveTrak 系列的整合式設計理念,L-6 Max 將樂器輸入、麥克風前級、獨立耳機監聽、USB 多軌介面與行動裝置錄音功能收納在單一輕量機身中,使創作者能在任何場景迅速展開錄音,並同時兼顧多重工作需求。

L-6 Max 提供四組 XLR 專用輸入與額外兩組 TRRS「Phone」輸入,方便 Podcast、訪談或直播環境直接接入智慧手機或平板的通話、播放音訊,並具備回授抑制處理,能避免一般 TRRS 連線常見的回授問題,讓主持人與來賓能夠用更自然的方式溝通與收音。加上 ZOOM 自家透明乾淨的低噪音前級,不論搭配動圈或電容式麥克風,都能獲得穩定且解析度高的原始音質。

混音部分設計延續 LiveTrak 系列特色,包含直覺的推桿操作、輕量化的 EQ/COMP/REVERB/DELAY 效果設定、以及六軌獨立錄音到 SD 卡的能力。使用者可同時錄製多軌,並輸出混音完成的立體聲檔案,適合現場演出收錄、Podcast 一次錄製成品、或後製混音使用。L-6 Max 也能作為一個 USB Audio 介面,提供多軌輸入與輸出,讓使用者在電腦環境中繼續後期製作。

四組獨立 PHONES 耳機輸出提供個別監聽混音,每位講者或音樂人能設定自己偏好的監聽比例,減少錄製過程的溝通成本。在攜帶應用方面,L-6 Max 亦可透過 USB 線材供電,或使用行動電源運作,使其可輕鬆應對戶外採訪、工作坊錄製或移動錄音需求。

產品特色

  • 6 軌獨立輸入(4 XLR + 2 TRRS Phone)適合 Podcast、樂器與混合錄音情境
  • TRRS 手機輸入具備回授抑制(Mix-Minus),可直接整合通話與遠端訪談
  • 具備 ZOOM 高品質麥克風前級,提供乾淨低噪音的錄音音質
  • SD 卡可同時錄製多軌與立體聲混音檔案
  • 內建 EQ、COMP、REVERB、DELAY 效果,方便現場混音與即時處理
  • 可切換成 USB 多軌介面,連接電腦 DAW 進行後製
  • 四組獨立耳機監聽,讓每位講者/演出者擁有專屬監聽混音
  • 支援 USB 或行動電源供電,輕量便攜
  • 適合音樂人、Podcast 團隊、直播者、教育錄音與戶外訪談用途

商品規格

MIC/LINE 輸入
4 × XLR/TRS 複合式插孔
XLR 最大輸入電平
+4 dBu
TRS 最大輸入電平
+24 dBu
幻象電源
+48 V
耳機/監聽最大輸出
50 mW + 50 mW(63 Ω 負載)
通道 EQ
HIGH 10kHz / MID 100Hz–8kHz / LOW 100Hz,各 ±15 dB
錄音格式
48 kHz / 32-bit float WAV
最大同時錄音軌數
14
錄音媒體
microSDHC / microSDXC(Class 10 以上)
顯示器
128 × 64 OLED
音訊介面
USB 2.0,輸入 14 / 輸出 4,48 kHz,32-bit float / 24-bit
頻率響應
20 Hz–20 kHz,−1.0 dB / +0.5 dB
展開完整規格(16 項)
等效輸入雜訊
-120 dBu 以下(IHF-A,150 Ω 輸入)
電源

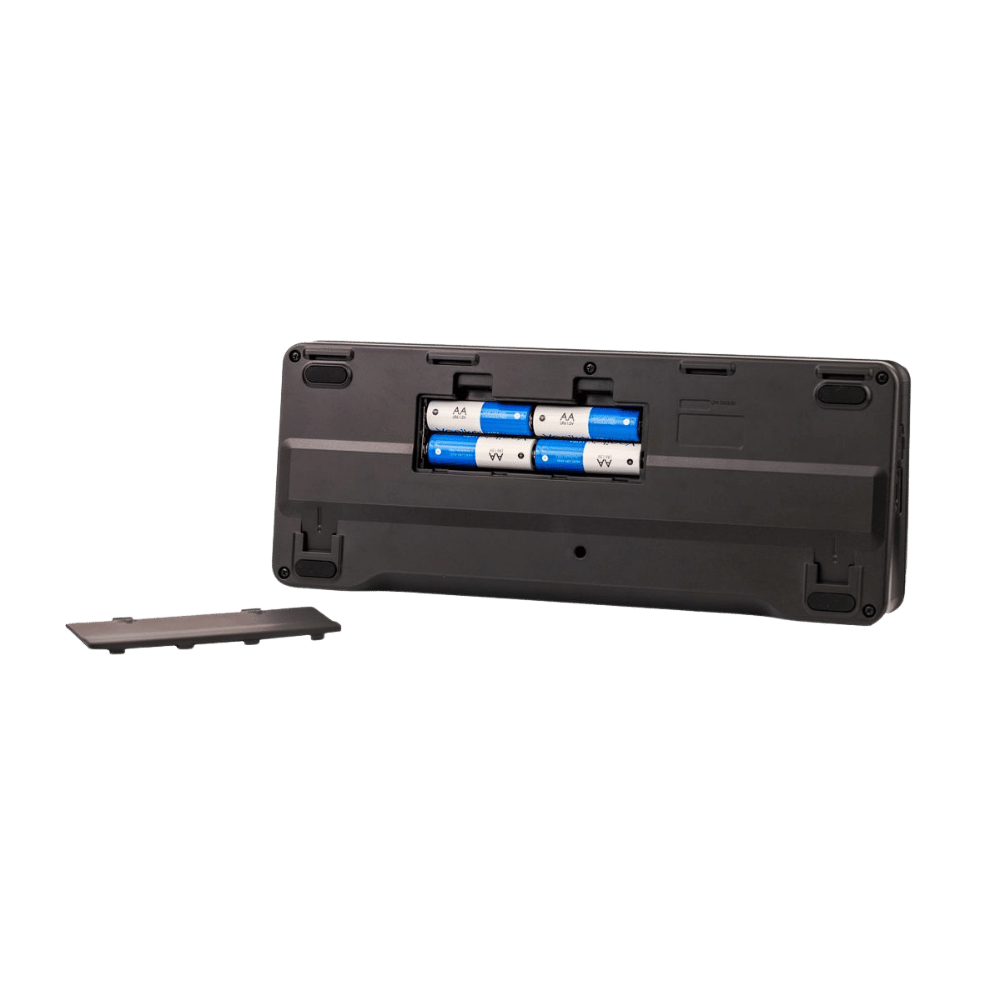

4× AA 電池 / AC 變壓器 AD-17(DC 5V/1A)/ USB Bus Power
耗電量
5 W(最大)
尺寸
284(W)× 114(D)× 46.5(H)mm
重量
673 g(本體)/ 767 g(含電池)
XLR 輸入阻抗
3.8 kΩ 以上
TRS 輸入阻抗
18 kΩ 以上(Hi-Z 關)/1 MΩ 以上(Hi-Z 開)
幻象電源每通道耗電量
20 mA 以下
LINE 輸入端子
8 × TS 插孔
LINE 輸入阻抗
30 kΩ 以上
LINE 最大輸入電平
PAD 0 dB 時 +4 dBu/PAD −20 dB 時 +24 dBu
AUX SEND 輸出
2 × TRS 插孔(阻抗平衡),最大 +9.5 dBu,輸出阻抗 147 Ω
MASTER 輸出
2 × TRS 插孔(平衡),最大 +15 dBu,輸出阻抗 147 Ω
匯流排
MASTER:1/SUB-MIX:1/AUX SEND:2/SEND EFX:1
電平表
6 分段
Send 效果
共 6 種
