INSTRUō I-ō47 模組化合成器

INSTRUō I-ō47 是一款 Eurorack 模組化合成器的多模態諧振器/濾波器(Filter)模組,靈感源自 ARP2500 經典 1047 模組的復古電路設計,並加入了一些額外功能與獨特巧思。

關於 INSTRUō

INSTRUō 是一家位於蘇格蘭格拉斯哥的模組化合成器公司,致力於發展高品質、創新的模組合成器。該品牌的產品範圍包括各種功能豐富的模組,從基本的振盪器到具有生物反饋功能的模組,各類型產品皆投入了不少創作心血。INSTRUō 的模組以其高品質、創新性而聞名,尤其是一些標誌性的產品,如 Scion 生物反饋至 CV 模組、Troika 三重振盪器和 Cs-Lcomplex 振盪器。時至今日 INSTRUō 仍不斷推出新產品,並為合成愛好者提供豐富的選擇,激發出他們獨一無二的音樂創作。

INSTRUō I-ō47

I-ō47 Multimode Resonator/Filter is a modern take on a vintage circuit design inspired by the classic 1047 module of the ARP2500. It has been designed with some extra features and quirks built in.

The internal VCA’s are a new hybrid design of matched transistors and precision op-amps. With CV controllable centre frequency, resonance/Q and notch offset along side FM, strike and a complex dual input with wave shaping limiter, the I-ō47 is truly a filter for all occasions.

產品特色

  • Centre frequency range 16Hz to 16KHz
  • 1V/octave, Coarse and Fine frequency controls
  • FM input with attenuverter
  • Low pass 18 dB/octave
  • High pass 18 dB/octave
  • Band pass ~6 – 18 dB/octave dependent on Q
  • Notch with variable offset –/+ 2 octaves
  • Input with gain control
  • Inverted input with resonance dependent gain
  • Strike input for pinging the filter
  • Feedback switch which adds BP to the input for enhances resonance
  • Limiter based on tanh wave shaper which affects primary input (post gain fader)

商品規格

中心頻率範圍
16Hz 至 16KHz
低通斜率
18 dB/octave
高通斜率
18 dB/octave
帶通斜率
~6 – 18 dB/octave (依 Q 而定)
Notch 偏移範圍
–/+ 2 octaves
模組寬度
14HP
模組深度
27mm
+12V 電流消耗
50mA
–12V 電流消耗
50mA

Line 好友

保固說明

關於 DigiLog

加入好友

Reviews:

目前尚無評論

Purchase FAQ

Q1. How is shipping calculated? Is there free shipping?

Orders over NT$3,000 qualify for free shipping. Orders under NT$3,000 incur a NT$120 shipping fee. In-store pickup is always free.


Q2. What payment methods are available?

We accept: credit card (single payment, or 3/6-month installments), bank transfer, convenience store payment code, cash on delivery, in-store payment, and AFTEE deferred payment. Installments are currently available only for credit cards issued by CTBC Bank, E.SUN Bank, and Taishin Bank. Cash on delivery is not available for software products or orders over NT$10,000.

E-invoices are issued for all purchases and sent automatically to your registered email. Once a personal (duplicate) invoice is issued, it cannot be changed or reissued as a company (triplicate) invoice.


Q3. How does in-store pickup work?

Select "In-store pickup" (free) at checkout. We will notify you by email once your items are ready. Please bring your order information to the store.

Store address: 2F., No. 2-1, Aly. 2, Ln. 244, Sec. 3, Roosevelt Rd., Zhongzheng Dist., Taipei City. Opening hours: Monday to Saturday 11:00 – 18:30 (closed on Sundays).


Q4. What is the inspection period?

According to the Consumer Protection Act, online purchases come with a 7-day inspection period starting from the delivery date. Please note that the "inspection period is not a trial period." The purpose is for you to inspect and review the product, not to use it. If you are unsatisfied after inspection, please do not open or use the product and follow the return procedures immediately. Returned products must be in complete packaging with all accessories, gifts, and original packaging intact. Any missing, damaged, or incomplete items may affect your return rights and restoration costs may be deducted.


Q5. How do I process a return or exchange?

If you wish to return a product, please ensure it is in complete, new condition with the original packaging undamaged. This includes the product itself, accessories, warranty card, original packaging, and all accompanying documents. If the product is damaged due to reasons attributable to you, we may not be able to process the return, or repair costs may be deducted from the refund. However, products with manufacturing defects are exempt and qualify for unconditional return or exchange.

Please contact us by phone or email within the inspection period, providing the reason for the return/exchange, current product condition, phone number, and pickup address. We will arrange the return within 3-5 business days.


Q6. How will I receive my refund, and how long does it take?

Refund methods and timelines vary by payment method:

Credit Card: After we receive the returned product, the refund will be credited to your credit card account within approximately 5-7 business days. Depending on your billing cycle, the refund may appear on your current or next statement. Please confirm with your credit card issuing bank.

Bank Transfer: Please contact service [at] digilog.tw with your complete bank details (bank name, branch name, bank code, account holder name, account number). We will arrange courier pickup of the returned product and transfer the refund to your designated account within 5-7 business days.


Q7. Is there a warranty on products?

Products come with a 1-year warranty. For repairs during the warranty period, please contact service [at] digilog.tw or call +886-2-23638171.


Q8. Do I need to pay for shipping when sending products for repair?

Round-trip shipping costs for product repairs are the customer's responsibility.

INSTRUŌ Others:

INSTRUŌ tàin INSTRUO 模組化合成器 - Utility
-18%
INSTRUŌ àradh INSTRUO 模組化合成器 - Filter
-10%
INSTRUŌ arbhar INSTRUO 模組化合成器 - Granular
-10%
INSTRUŌ cruïnn INSTRUO 模組化合成器 - VCO
-9%
INSTRUŌ dåpf INSTRUO 模組化合成器 - Filter
-10%

You may be interested in:

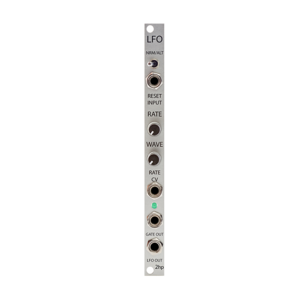

2hp LFO - LFO
