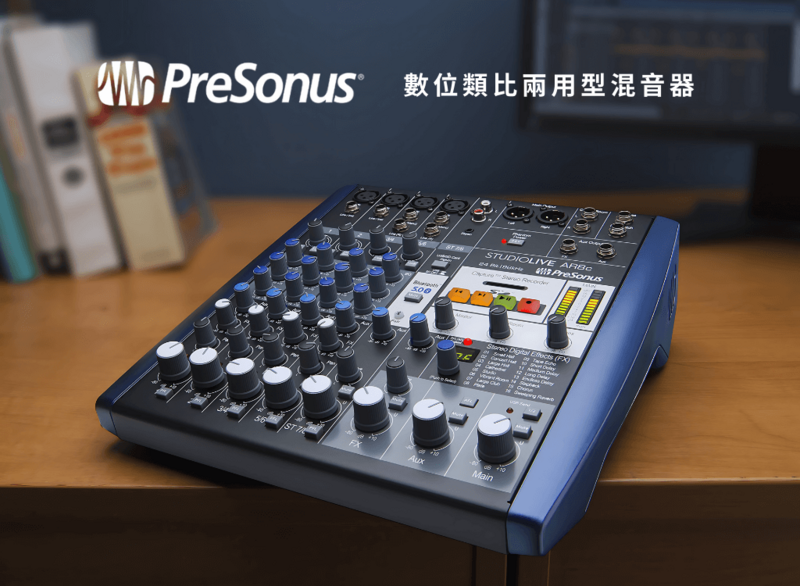

樂器輸入

種類

¼” TS Female, Unbalanced, Hi-Z

最大輸入音量

+9 dBu ±1.0 dB

GAIN 調整範圍

43 dB, ±1 dB (+12 to +55 dB)

類比輸出的頻率響應

20 Hz to 20 kHz, +0.5/-1.5 dB

頻率響應 (USB - Direct)

20 Hz to 20 kHz, +0.5/-1.5 dB

動態範圍 (min. gain, A-wtd)

> 105 dB

動態範圍 (mid. Gain, unwtd)

> 108 dB

THD+N (1 kHz, -1 dBFS, A-wtd)

< 0.01%

THD+N (1 kHz, -1 dBFS, unwtd)

< 0.01%

輸入阻抗

> 1 MΩ

Note: All Channel Inputs sum through Mic preamp

Line 輸入

種類

¼” TRS Female, Balanced

最大輸入音量 (min. gain, 1 [email protected]% THD+N)

+26 dBu ±1.0 dB

GAIN 調整範圍

Mono Channels: 40 dB, ±1 dB (-5 to +35 dB)

Stereo Channels: 0 dB or +10 dB (+10 dB Boost)

類比輸出的頻率響應

20 Hz to 20 kHz, +0.5/-1.5 dB

頻率響應 (USB - Direct)

20 Hz to 20 kHz, +0.5/-1.5 dB

類比輸出信噪比 (+4 dBu) (+4 dBu)

85 dB

THD+N (1 kHz, -1 dBFS, A-wtd)

< 0.01%

平衡輸入阻抗

10 kΩ

Note: All Channel Inputs sum through Mic preamp

Main, Control Room, Monitor, and FX 輸出

Main 輸出種類

XLR Male, Impedance Balanced

Control Room, Monitor, FX 輸出種類

¼” TRS Female, Balanced

Rated Output Level (Main Outputs)

+24 dBu, ±1.0 dB

Rated Outputs Level (Control Room, Monitor, FX Outputs)

+18 dBu

頻率響應

20 Hz to 20 kHz, +0.5/-1.5 dB

動態範圍 (A-wtd)

> 108 dB

THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd)

< 0.01%

輸出阻抗

100 Ω

耳機輸出

種類

¼” TRS Female, Stereo, Unbalanced

最大輸出音量

150 mW/channel @ 60 Ω

頻率響應

20 Hz to 20 kHz, +0.5/-1.5 dB

動態範圍 (A-wtd)

> 103 dB

THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd)

< 0.01%

System Crosstalk

輸入到輸出 (Ref = +4dBu, 20 Hz to 20 kHz, unwtd)

-90 dBu

相鄰音軌 (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd)

-85 dBu

Signal Level LED

Signal

-30 dBFS (pre-EQ)

Clip

-3.0 dB before clip (pre- or post-EQ)

Channel EQ

Low Cut

100 Hz, -18 dB/Octave

High Shelving

±15 dB @ 10 kHz

Mid Peaking (Mono Channels)

±15 dB @ 140 Hz to 3.5 kHz (variable)

Mid Peaking (Stereo Channels)

±15 dB @ 2.5 kHz

Mid-Band Q

Boost: 1.0, Cut: 2.5

Low Shelving

±15 dB @ 100 Hz

數位音訊

介面連接

USB 2.0

ADC Dynamic Range (Component)

114 dB

ADC Dynamic Range (Measured: A-wtd, 48 kHz)

105 dB

DAC Dynamic Range (Component)

114 dB

DAC Dynamic Range (Measured: A-wtd, 48 kHz)

105 dB

Signal-to-Noise (a-weighted)

-96 dB

Bit Depth

24-bit

Internally Supported Sample Rates

44.1, 48, 88.2, 96 kHz

Jitter

< 80 ps RMS (20 Hz – 20 kHz)

Jitter Attenuation

> 60 dB (1 ns in => 1 ps out)

SD 卡錄音功能

支援格式

FAT16 formatted SD™ card, FAT32 formatted SDHC™ card

容量

SD card: 2 GB; SDHC card: 32 GB

檔案格式

Stereo WAV

回放檔案格式

Stereo WAV, MP3 (96-320 kbs, 32 / 44.1 / 48 kHz)

取樣率(wav)

44.1 kHz

位元

Recording: 24-bit

Playback: 16- or 24-bit

供電相關

連接孔

IEC

電壓輸入範圍

90 to 240 VAC

建議使用環境溫度

0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

相關尺寸

高度

3.5” (89 mm)

底盤寬度

11” (284 mm)

深度

12.3” (313 mm)

重量

7.1 lbs (3.2 kg)
