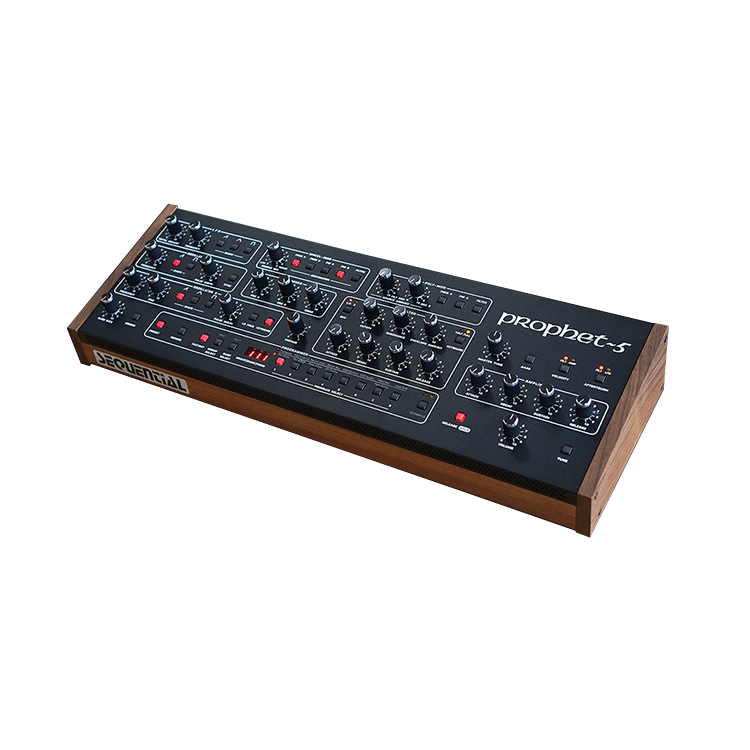

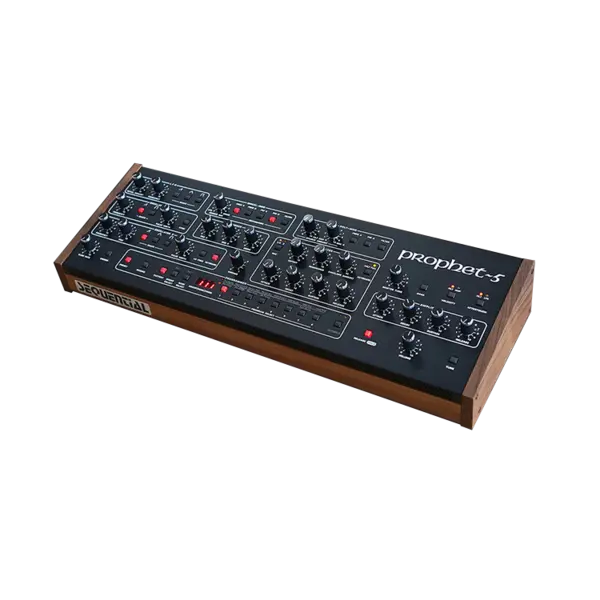

The Prophet-5 合成器音源內建經典的類比合成器音色在您的操作面板中，就像 The Prophet-5 的鍵盤版本一樣，The Prophet-5 合成器音源是 Prophet-5s 系列中最棒的選擇， 這是因為它內建了三款 Prophet-5 傳統音色，當中透過真正 Curtis 模擬 VCO 以及 Filter （與  Rev3 相同）體現了傳奇合成器的三個版本：Rev 1、Rev2、Rev3。作為 Dave Rossum 設計的新型 2140 low pass filter，如同在最原始的 Rev1  以及 Rev2 的 2040 一樣。Rev 開關可以在兩種 Filter 設計之間進行切換。同時這款 Prophet-10 調整了 Filter 的波型以及響應讓它更能分別地符合原本的 Rev1/2 以及 Rev3。

透過真實且扎實的原始聲響，以及實用的性能，這款 Prophet-5 合成器音源絕對能夠符合您對於經典類比聲響的渴望。

規格

振盪器相關：

• Two authentic CEM 3340 voltage-controlled oscillators per voice
• Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse.
• Pulse width per oscillator
• Hard sync: Oscillator A syncs to Oscillator B
• Low frequency mode (Oscillator B)
• Keyboard tracking on/off (Oscillator B)

混音器：

• Oscillator A amount
• Oscillator B amount
• White noise amount

低頻濾波器：

• Four-pole, resonant, low-pass filter per voice
• Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
• Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
• Rev3 filter is a Doug Curtis-designed CEM 3320
• Filter can be driven into self-oscillation with the Resonance control
• Keyboard tracking: off, half, full

FILTER ENVELOPE

• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount

AMPLIFIER ENVELOPE

• Four-stage (ADSR) envelope generator
• Velocity modulation of envelope amount

低頻振盪器：

• Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
• Both Initial Amount and mod wheel control
• Mod destinations: oscillator A frequency, Oscillator B frequency, Oscillator A and B pulse width, filter cutoff

POLY MOD

• Sources: filter envelope and Oscillator B
• Destinations: Oscillator A frequency, Oscillator A pulse width, filter cutoff

VINTAGE KNOB

• Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s.

AFTERTOUCH

• Channel (mono) aftertouch
• Destinations: filter cutoff frequency, LFO amount

演出控制：

• Polyphonic glide (portamento)
• Unison (monophonic) mode with configurable voice count, from one to all five voices and key modes
• Preset switch: when off, the front panel is live; what you see is what you hear

使用者自訂記憶：

• 200 user and 200 factory programs in 5 banks of 40 programs each
• Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

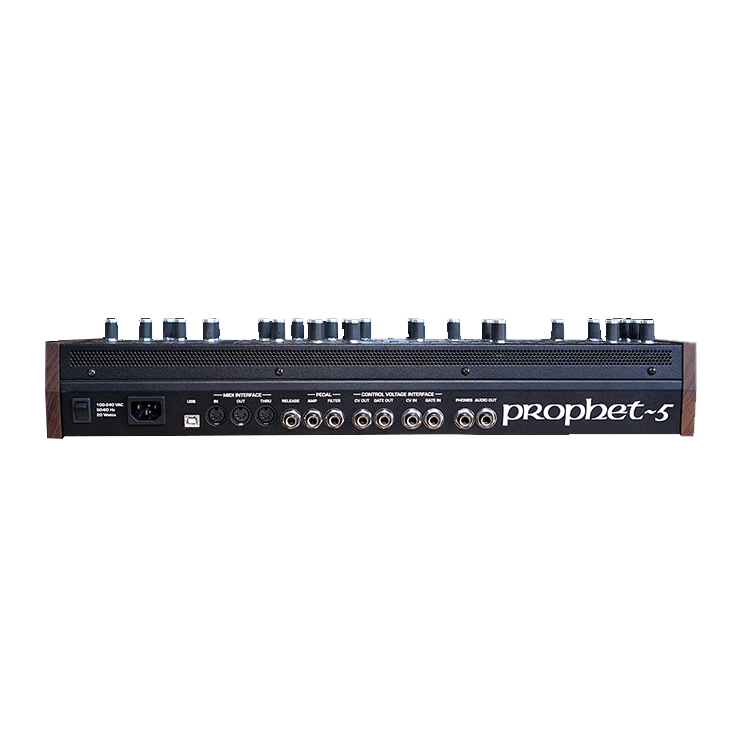

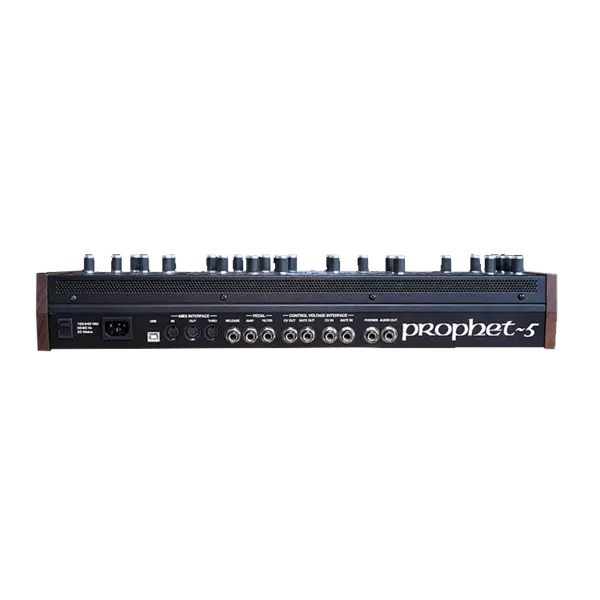

輸入/輸出：

• Mono output (1 x 1/4” phone jack)
• Headphone output (stereo, 1/4” phone jack)
• MIDI in, out, and thru ports
• USB for bidirectional MIDI communication
• Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation.
• Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the Prophet-5. Outputs a 15-volt on/off used to gate the envelopes of an external synth.
• Low-pass filter cutoff expression pedal input
• Volume expression pedal input
• Sustain footswitch input

供電：

• IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5: 20 watts maximum power consumption.

尺寸：

• 20.75″ L x 7.4″ W x 3″ H (52.70 cm x 18.8 cm x 7.62 cm)
• Roadworthy all-steel case with premium black walnut heartwood trim
