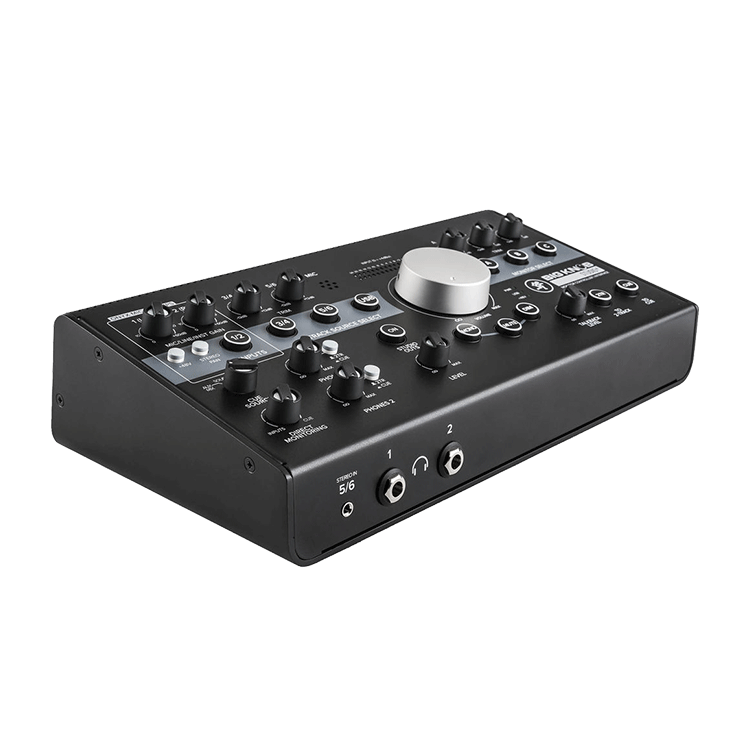

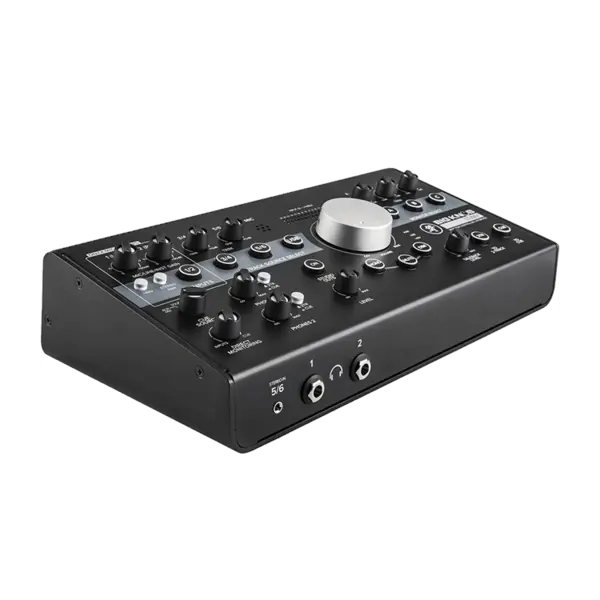

After 0000 1498040786 1313076

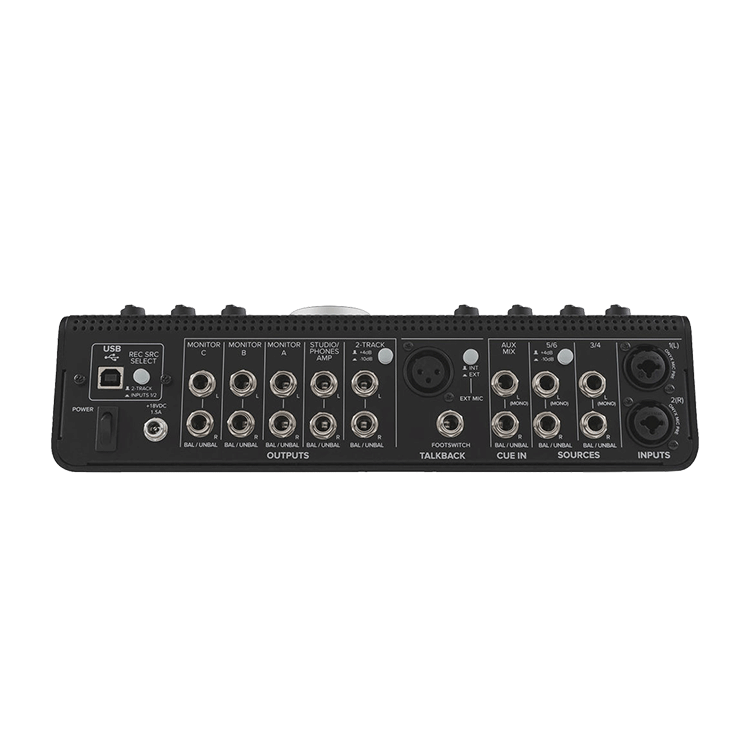

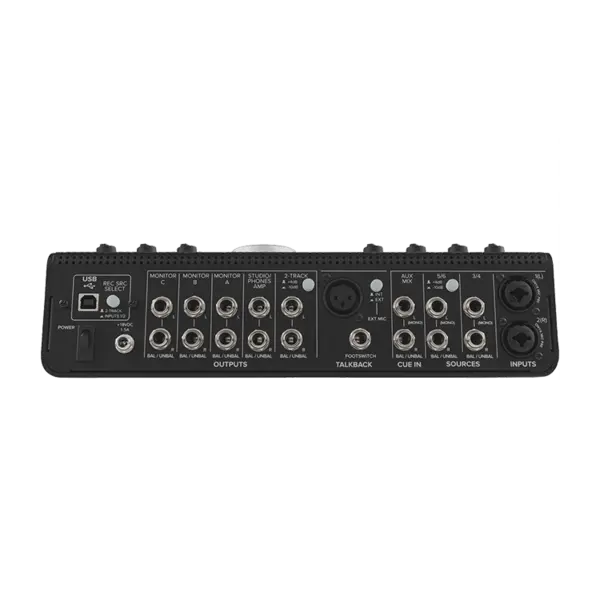

After 0001 1498040114 img 817095

Mackie Bigknob Studio+ 4x3 監聽控制器/錄音介面

滿 NT$ 5,000 全亞洲區免運費

促銷價 NT$ 12,900

分期資訊:
30 利率,每期 NT$ 4,300
60 利率,每期 NT$ 2,150

商品狀態:預購商品 (約 10~15 個工作天)

保固資訊:1 年保固 (不包含: 配件、線材、modular)
滿 NT$ 5,000 全亞洲區免運費
付款方式: 7 11 Family mart Hilife Ok Visa Jcb Atm Cash delivery

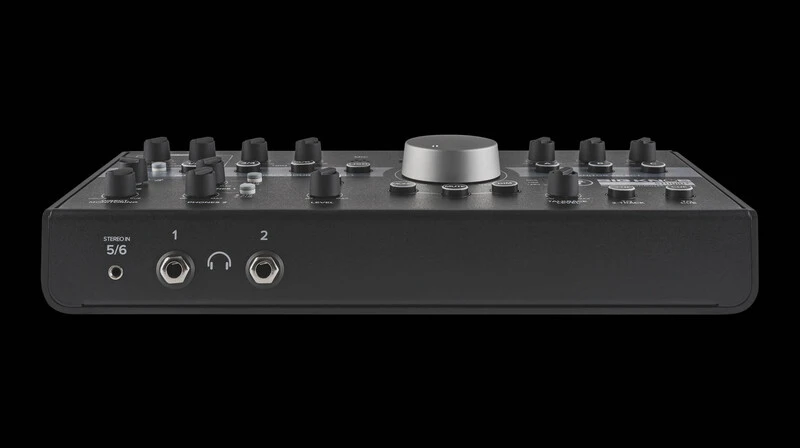

professional source and monitor selection for recording studios
PROVEN

PRO SOURCE AND MONITOR SELECTION

The Mackie Big Knob has proven itself for more than a decade as the go-to monitor controlling solution for home and professional studios. The all-new Big Knob family takes the best of this classic workflow, delivering the right solution for the modern studio.

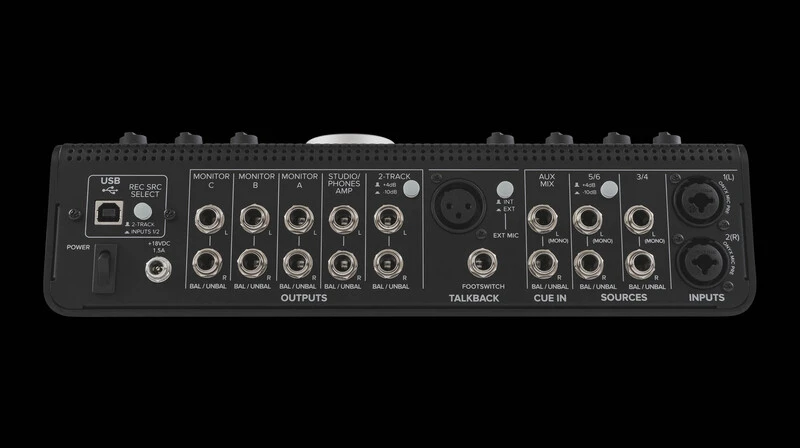

Mackie Monitor Controller Onyx Mic Preamps

HI-REZ

PREMIUM ONYX RECORDING/PLAYBACK

Both the Big Knob Studio and Big Knob Studio+ offer high-resolution USB interfacing at resolutions up to 192 kHz, featuring dual Onyx mic preamps, delivering an ultra-wide 60 dB of gain range and award-winning sound quality.

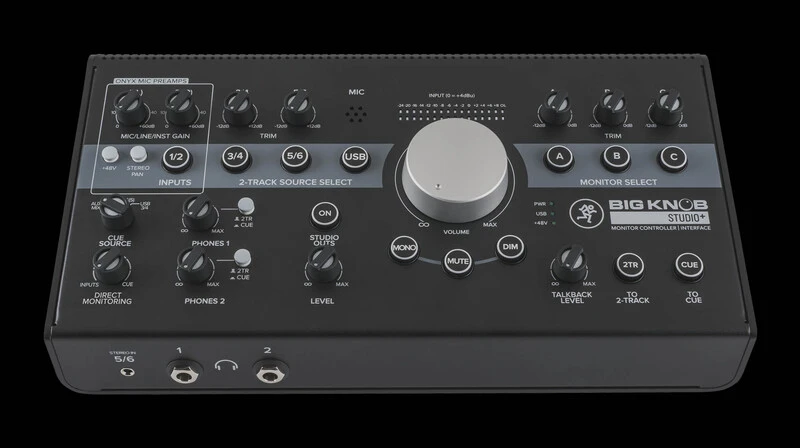

Mackie Big Knob monitor controller being used in a home recording studio

COMPREHENSIVE

FLEXIBLE INTEGRATION

The expanded Big Knob lineup offers models with unique feature sets and I/O to suit a huge range of applications. Features like dual headphone outs, a dedicated amp-driven studio out, a true cue mix and more ensure Big Knob will fit right into your studio or workspace.



詳細規格



Inputs 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Inputs
4 x 1/4" TRS Balanced/Unbalanced Line Inputs
2 x 1/4" TRS Balanced/Unbalanced Cue Input
1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input
1 x 3-Pin XLR Talkback Mic Input
Outputs 2 x 1/4" TRS Balanced/Unbalanced 2-Track Line Outputs
6 x 1/4" TRS Balanced/Unbalanced Monitor Outputs
2 x 1/4" TRS Balanced/Unbalanced Monitor/Line Outputs
2 x 1/4" TRS Unbalanced Headphone Outputs
Footswitch Input 1 x 1/4" TRS
USB I/O 1 x USB 2.0 Type-B
Resolution 24-Bit / 192 kHz
Frequency Response 20 Hz to 20 kHz (±0.5 dB, Unity Gain, +4 dBu Input)
Noise Mic Inputs to Outputs: < -125 dBu RMS, A-Weighted (150 Ohms Terminated, 22 kHz Bandwidth)
Line Inputs to Outputs: < -90 dBu RMS, Unweighted (150 Ohms Terminated, 22 kHz Bandwidth)
THD + N <0.01% Unweighted (Unity Gain, 1 kHz at +4 dBu Input, 80 kHz Bandwidth)
Crosstalk < -60 dB at 1 kHz (Unity Gain, -1 dBFS Input)
Attenuation Muted: -60 dB
Dim: -20 dB
Maximum Input Level +22 dBu
Maximum Output Level +22 dBu
Power Requirements 100 to 240 VAC, 50/60 Hz, 0.75 A via Universal Power Supply
Dimensions (W x D x H) 6.8 x 11.9 x 3.2" / 17.3 x 30.2 x 8.1 cm
Weight 4.6 lb / 2.1 kg





​​​​​​​
