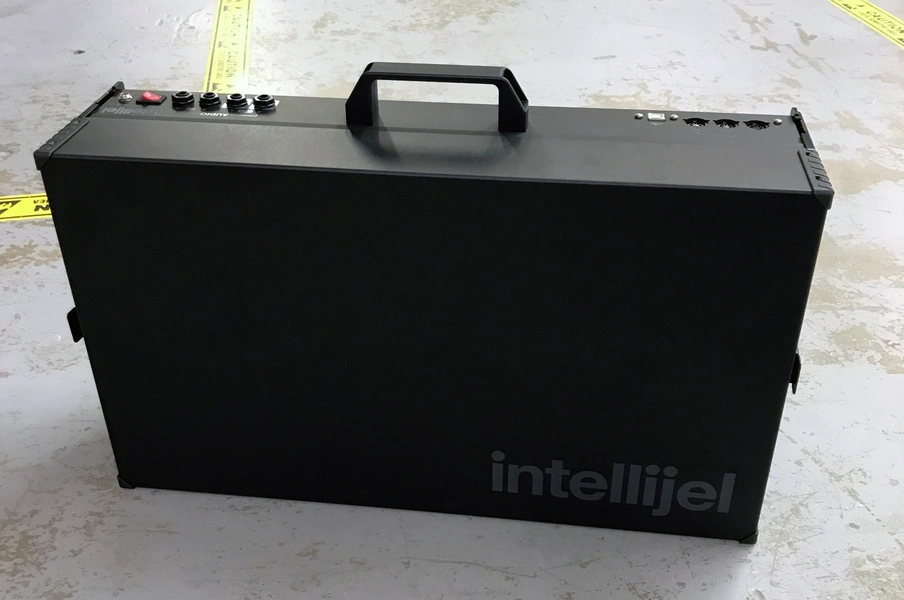

Intellijel 7U Case

購物滿 NT$ 5,000 免運費

NT$ 24,500

- 3 / 6 期分期 0 利率
- 滿 NTD 5,000 亞洲區免運費

商品狀態:預購商品(1~2 週出貨)

付款方式: 7 11 Family mart Hilife Ok Visa Jcb Atm Cash delivery

Features

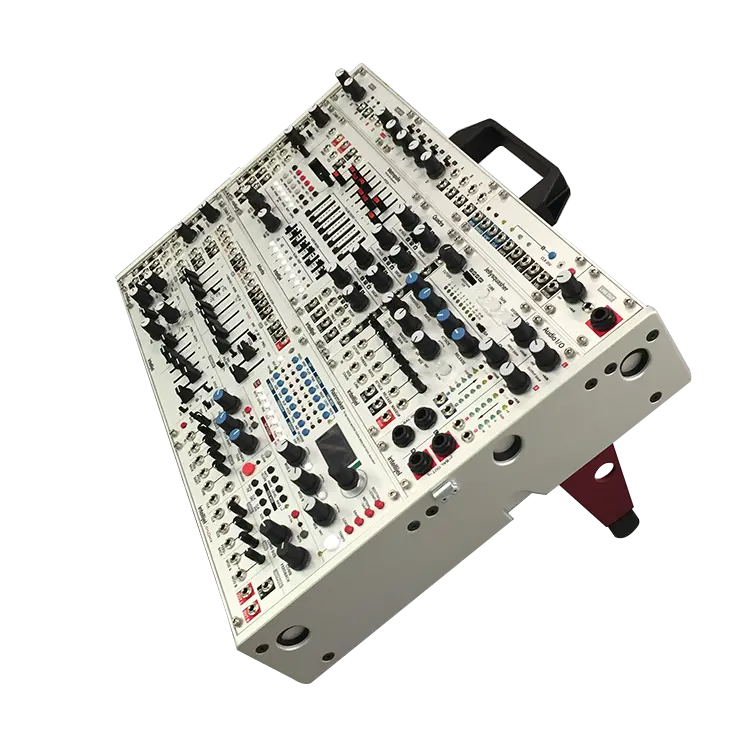

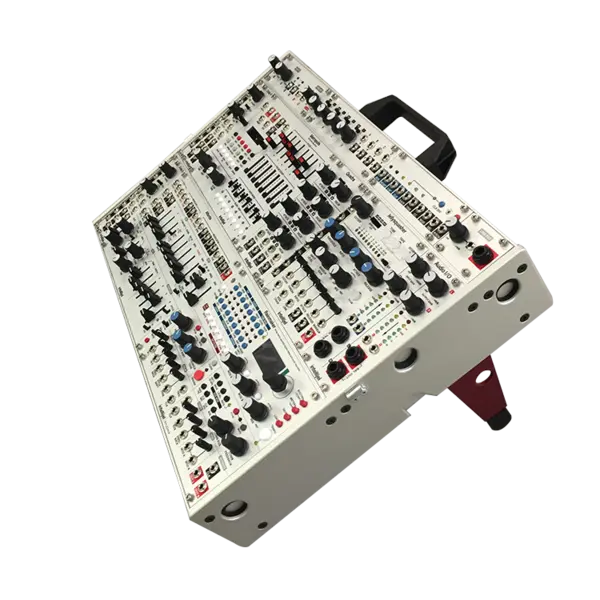

  • Two 84 hp or 104 hp rows (6U) of Eurorack module space.
  • One 84 hp or 104 hp row for Intellijel 1U modules.
  • Threaded M3 strips for mounting modules.
  • Available with either the high spec TPS80W (TPS80WMAX in the 104 hp version) power supply capable of powering up to 20 modules with +12 V output at 3000 mA, -12 V output at 3000 mA and +5 V output at 1500 mA or the TPS30 MAX with 1500 mA / 1500 mA / 1000 mA.

Construction:

  • Solid plastic carrying handle.

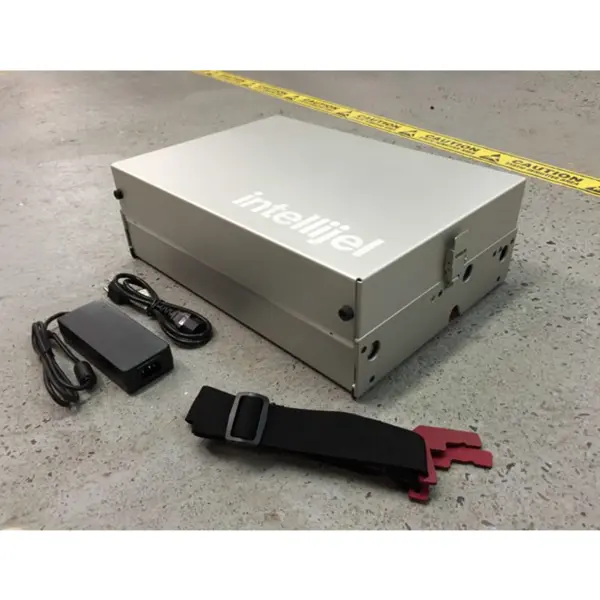

  • Anodized aluminum lid with latches, deep enough to close the case with cables patched in.
  • Retractable feet that can support the case at two different angles. Or lay the case flat on a table.
  • Plastic feet for resting the case on the table.
  • Rubber feet on bottom side of lid so the case can stand vertically with the lid attached.
  • Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together and for the carrying strap.

Rear panel:

  • Four 1/4″ audio jacks that can be connected to the Audio I/O 1U. Two ins and two outs.
  • MIDI In, Out, and Thru jacks. The In jack can be connected to the µMIDI 1U and will pass to the Thru. The Out is for future expansion.
  • USB port that connects to the µMIDI 1U and other future modules.
  • Rocker switch and barrel plug for power entry.
